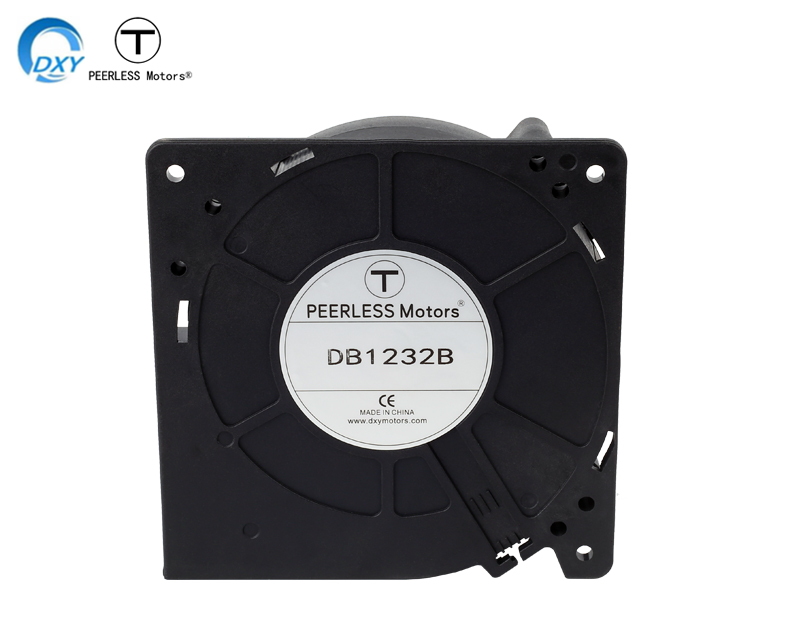

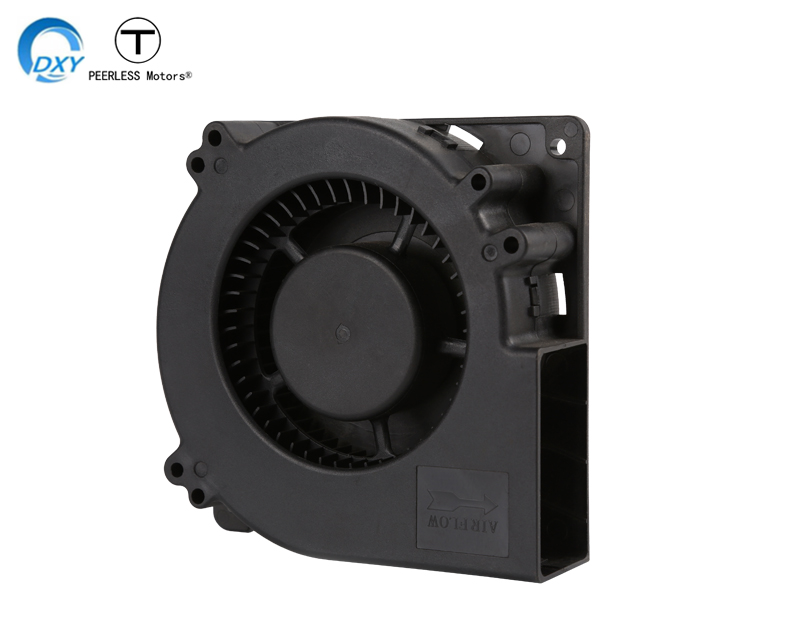

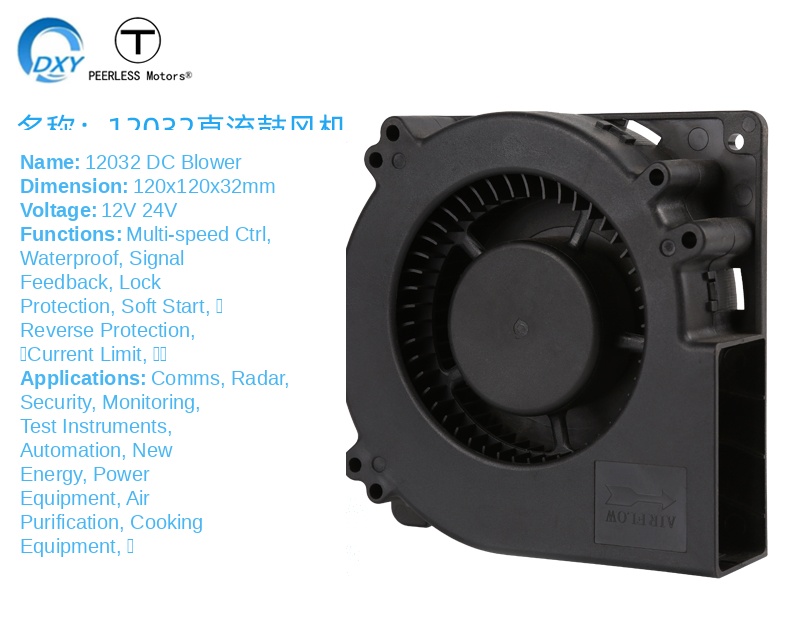

12032 DC Blower
DC blower delivers high airflow in a compact form factor. Equipped with precision dual ball bearings and pure copper winding motor for extended service life. Ideal for space-constrained cooling applications.
Specifications
| Name | 12032 DC Blower |
| Size | 120*120*32mm |
| Voltage | 12V-24V |
| Speed | 2000-3200 RPM |
| Air Flow | 20.63-33.01 CFM |
| Static Pressure | 12.64-32.37 mmAq |
| Noise | 42.2-52.0 dBA |
| Motor | DC Brushless Outer Rotor Motor |
| Impeller Material | PBT Bearing System: Ball Bearing, Long-life Sleeve FDB |
| Insulation Class | Agrade |
| Operating Temperature | -10℃～70℃ |
QUALITY CERTIFICATE | SUPER WATERPROOF | INTELLIGENT CONTROL
Applications
- Smart Home Appliances
- Chassis & Cabinet
- Power & Electricity
- Energy Storage
- productionMachineryetc.
Product Type
High Airflow Fan, TurboFan, DC Fan
Dimension Drawings & Performance Curves
Need a Custom Solution?
Contact us for custom speed control, waterproof, or noise-reduction requirements.
