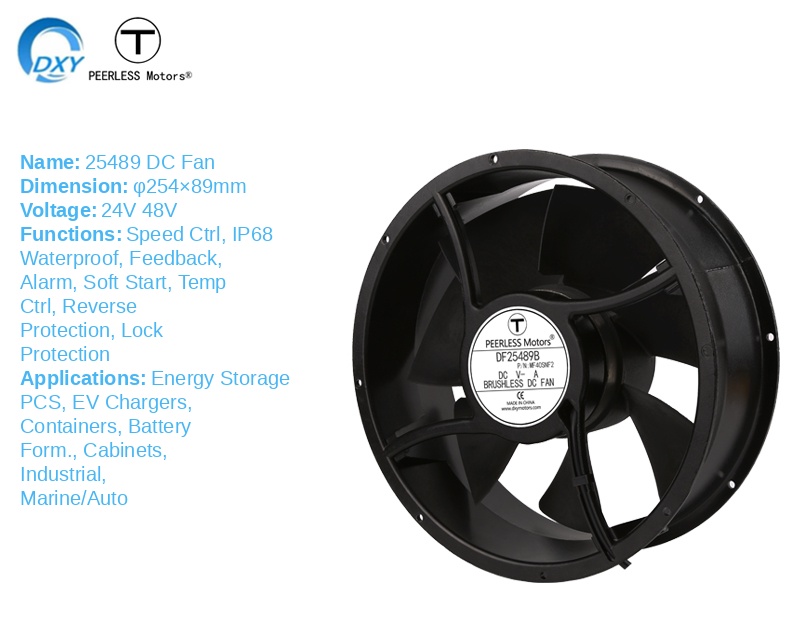

25489 DC Fan
DC axial cooling fan features excellent airflow performance with low noise and vibration. Dual ball bearing design, pure copper motor, and PBT housing ensure long service life and stable operation.
Specifications
| Air Flow | 634.74-952.12 CFM |
| Static Pressure | 14.52-32.66 mmAq |
| Frame Material | Aluminum Alloy |
| Impeller Material | PBT Eco-friendly & Fire-resistant |
| Bearing | Dual Ball Bearing |
Applications
- Automation Equipment
- Industrial Equipment
- Cabinet Equipment
- Data Center Equipment
- Factory Production Equipment
- Large-format Printing Equipment
- Air Conditioning & Cold Chain
Product Type
Axial Fan, coolingBlower, Metal Fan, DC Fan, High Airflow Blower

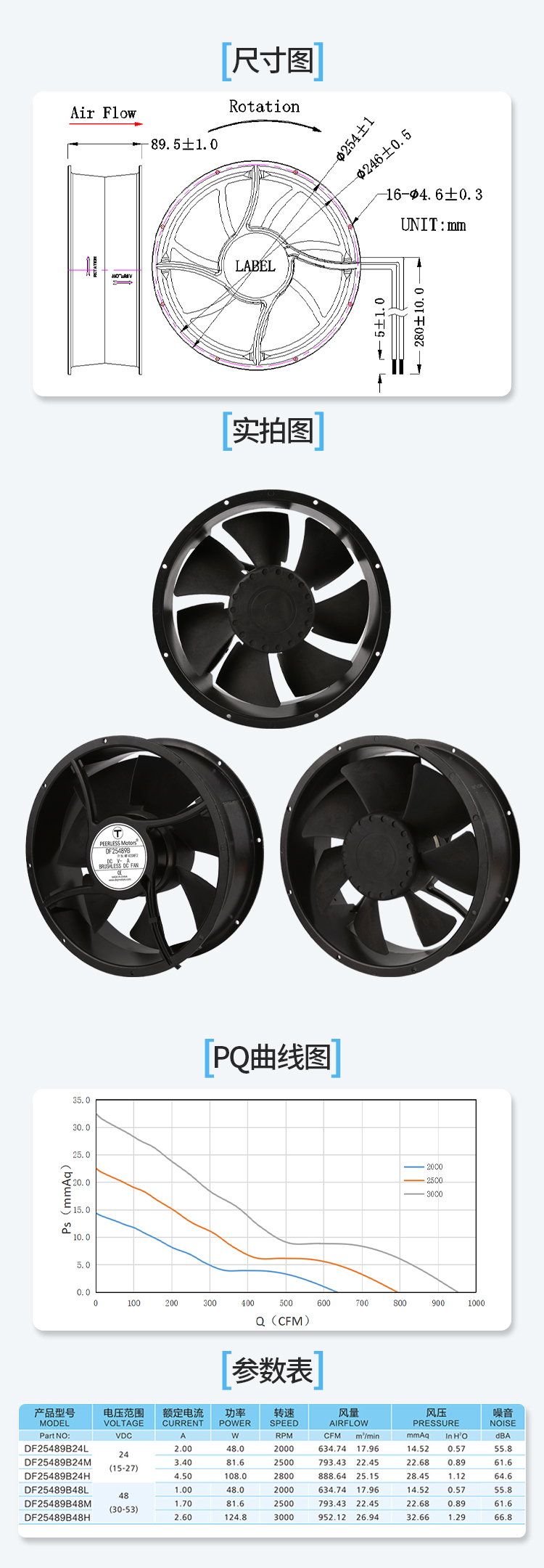

Dimension Drawings & Performance Curves
Dimension Drawings, Real Photos, PQ Performance Curves & Parameter Table
Product Features & Advantages
Super Waterproof
Up to IPX8 (Optional Function)
Various waterproof processes including frame sealing, single-cup molding, high-temperature injection, and low-pressure vacuum meet IPX4, IPX5, IPX6, IPX7, and IPX8 ratings. Easily handles harsh environments such as indoor humidity, outdoor rain, coastal areas, and high temperature and high humidity conditions.
Intelligent Monitoring & Feedback Alarm
(Optional Function)

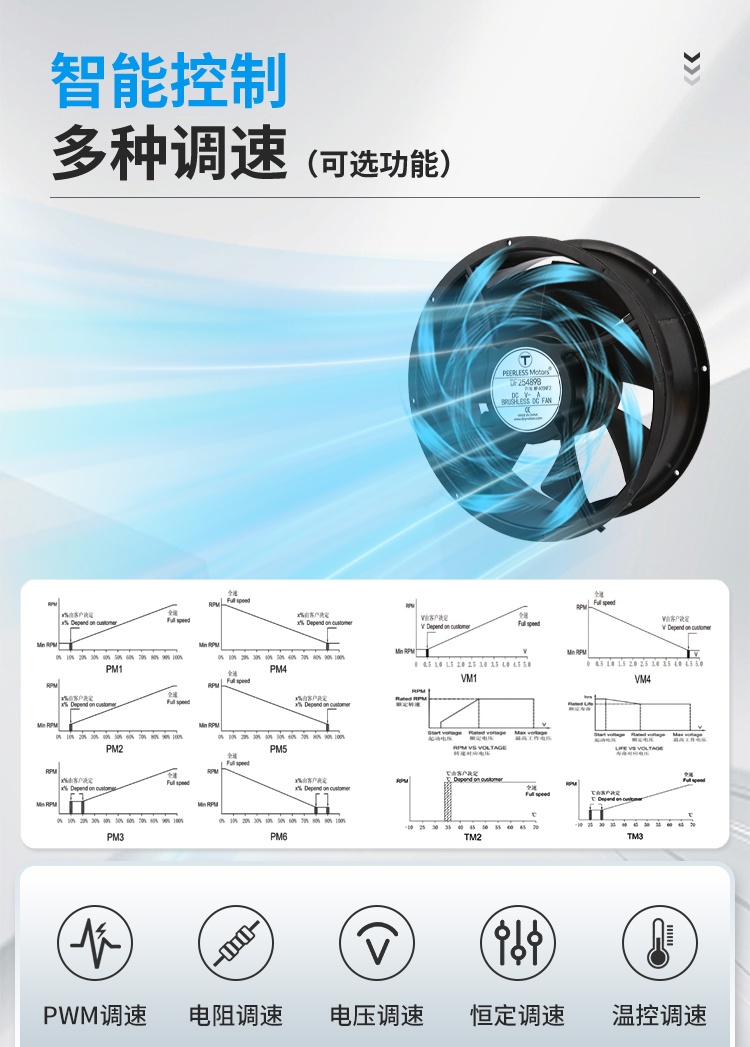

Smart Control – Multiple Speed Regulation
(Optional Function)
Multiple Protection – Circuit Safety
(Optional Function)
Current limiting protection, reverse connection protection, locked-rotor protection with auto-restart, and soft start. Bidirectional protection for both equipment and fan.
Fan Quality
Integrally molded eco-friendly fireproof PBT material with UL94V-0 fire rating. Anti-vibration, anti-corrosion, balanced hardness and toughness.
High-precision dual ball bearings with long service life, low noise, and low heat. 1.5-2.3x longer life than ordinary bearings.
5th gen upgraded DC brushless motor with high-efficiency control scheme. Excellent performance in lifespan, heat, power consumption, and load capacity.
Wide Applications
Need a Custom Solution?
Contact us for custom speed control, waterproof, or noise-reduction requirements.
