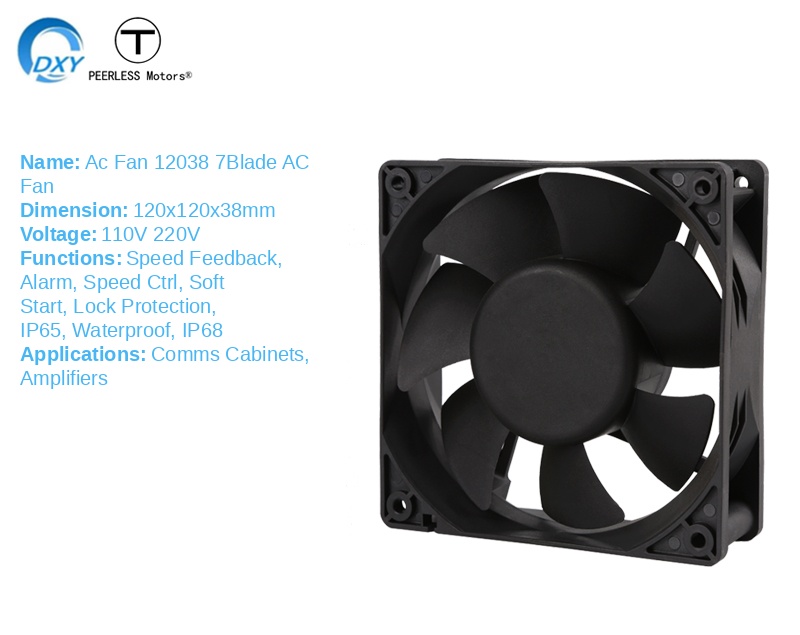

Ac Fan 12038 7blade AC Fan
AC axial fan offers dependable cooling with low energy consumption. Built with quality bearings, robust frame, and heat-resistant materials for continuous industrial operation.
Specifications
| Model | DF12038B22V |
| Name | 12038E CAC Cooling Fan(7） |
| Size | 120x120x38MM |
| Voltage | 110V–220V |
| Speed | 2500–4000 RPM |
| Noise | 40.0–50.0dBA |
| Motor | Brushless Outer Rotor Motor |
| Frame Material | PBT |
| Impeller Material | PBT |
| Insulation Class | Class A |
| Operating Temperature | -10℃―70℃ |
QUALITY CERTIFICATE | SUPER WATERPROOF | INTELLIGENT CONTROL
Applications
- Telecom Equipment
- Chassis & Cabinet
- Transportation Equipment
- Aviation Equipment
- Data Center Equipment
- industrialautomationetc.
Product Type
Booster Fan, High Airflow Fan, Axial Fan, DC Fan, 12cmFan, Speed-controlled Fan, Waterproof Fan

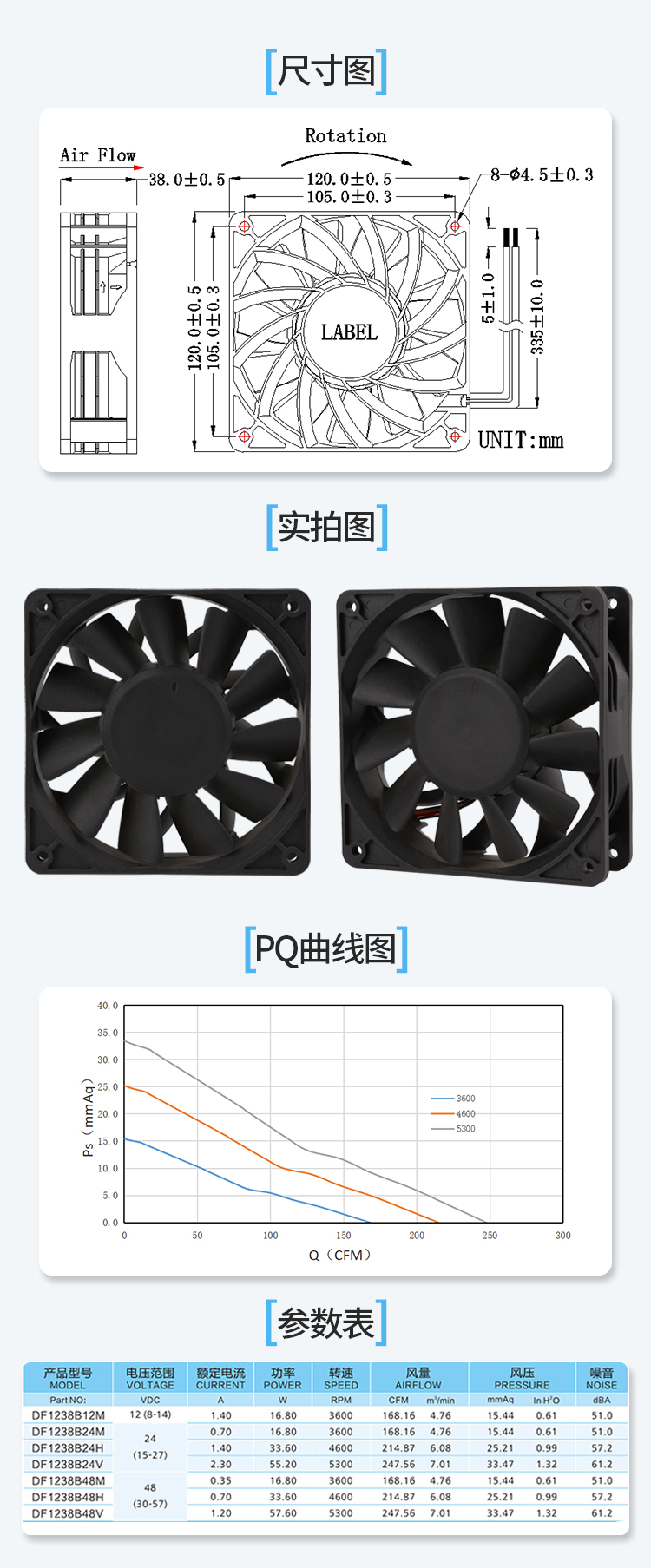

Dimension Drawings & Performance Curves
Need a Custom Solution?
Contact us for custom speed control, waterproof, or noise-reduction requirements.
