Df5025 DC Fan
DF DC axial cooling fan features excellent airflow performance with low noise and vibration. Dual ball bearing design, pure copper motor, and PBT housing ensure long service life and stable operation.
Specifications
| Model | DF5020B12V |
| Name | Df5025 DC Fan |
| Size | 50x50x20MM |
| Voltage | 05V、12V、24V |
| Speed | 4000-7000 RPM |
| Air Flow | 11.10-19.42CFM |
| Static Pressure | 2.79-8.54mmAq |
| Noise | 27.0-41.0dBA |
| Motor | DC Brushless Outer Rotor Motor |
| Frame Material | PBT |
| Impeller Material | PBT |
| Bearing | Dual Ball Bearing |
| Insulation Class | Class A |
| Operating Temperature | -10℃-70℃ |
| Weight | 32g |
QUALITY CERTIFICATE | SUPER WATERPROOF | INTELLIGENT CONTROL
Applications
- Medical Equipment
- medicalBeauty Equipment
- Power Supply
- Light Source
- Robotics
- Computer Chassis
- Power Supply
- Drone
- industrialComputer
Product Type
Axial Fan, DC Fan, smalltypeFan, 50mm, Quiet Fan, Speed Control, Feedback
Dimension Drawings & Performance Curves

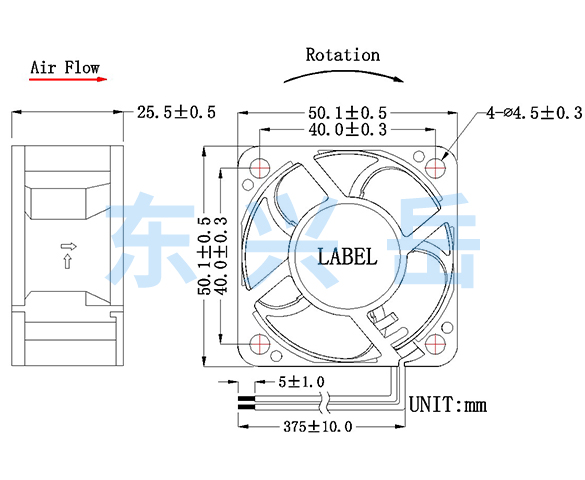

Dimension Drawing

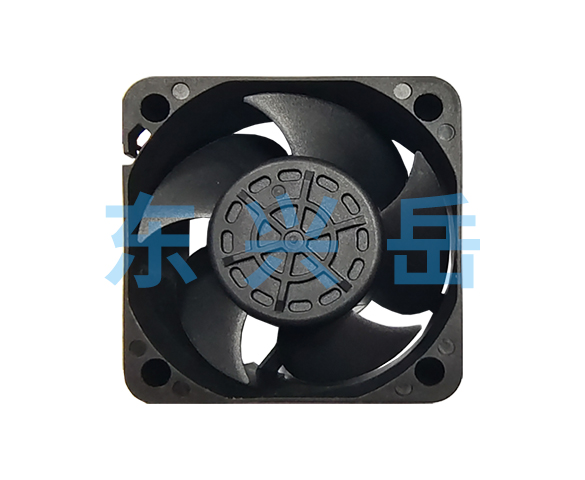

Real Photos

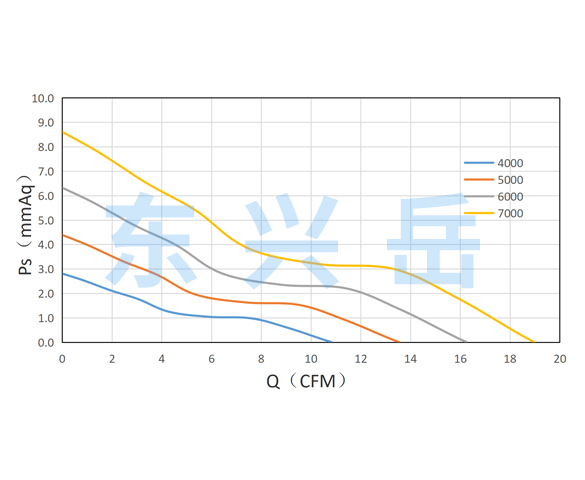

PQ Performance Curves
Need a Custom Solution?
Contact us for custom speed control, waterproof, or noise-reduction requirements.
