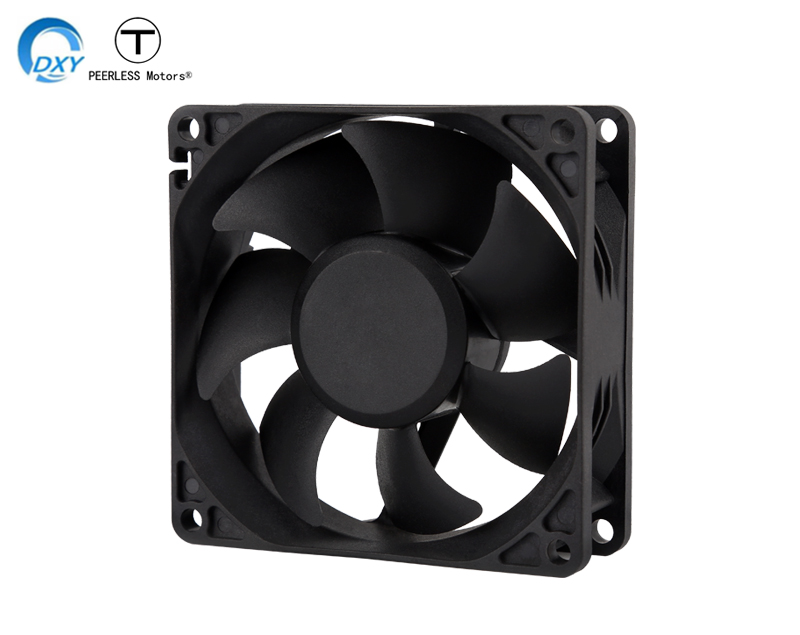

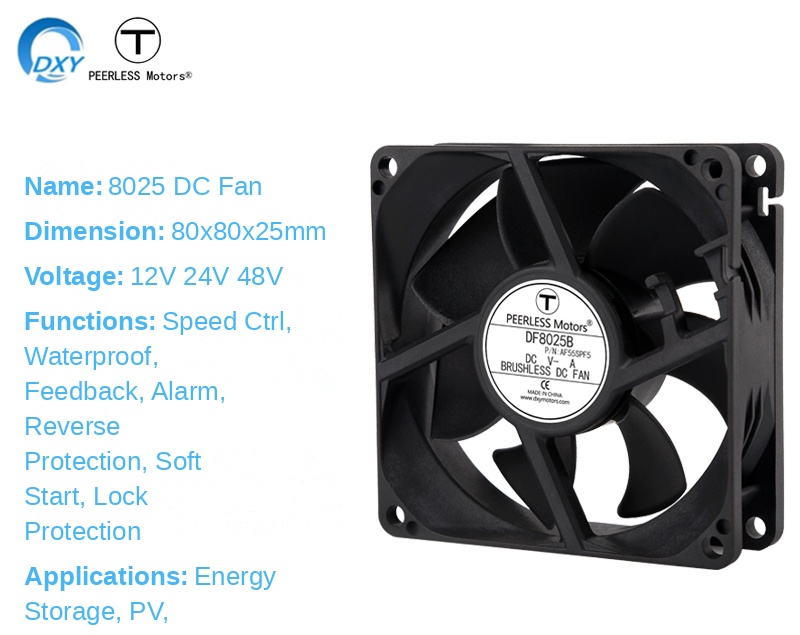

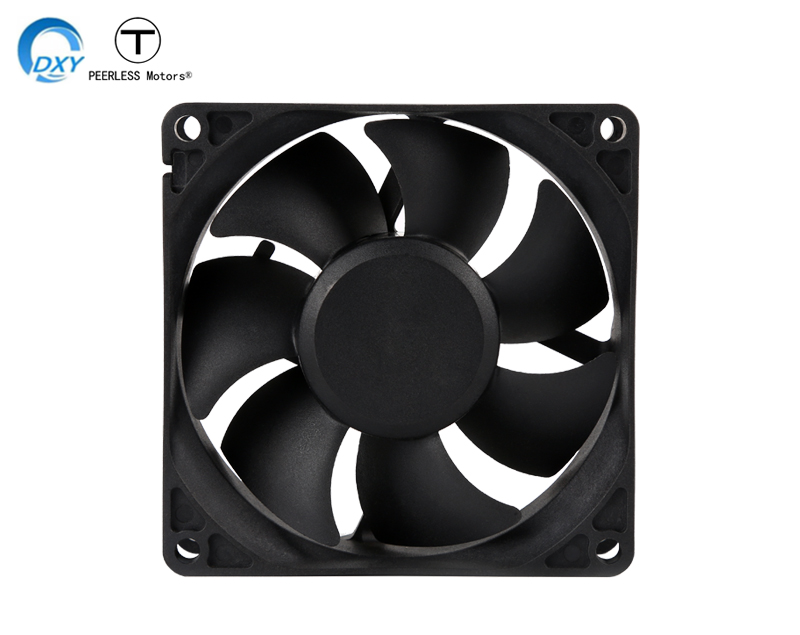

8025 DC Fan
coilallispure copperMade，reducesBloweroperationtemperatureandcurrentmorePlusenergy-savingeco-friendly， largeAir Flow、longservice life
Specifications
| Model | DF8025B12M |
| Name | 8025 DC Fan |
| Size | 80x80x25MM Speed: 3000–6000 RPM |
| Voltage | 12V、24V、48V |
| Air Flow | 39.67-76.87CFM |
| Static Pressure | 3.80–14.29mmAq |
| Noise | 32.2–48.6dBA |
| Motor | DC Brushless Outer Rotor Motor |
| Frame Material | PBT |
| Impeller Material | PBT bearingsystem：Adopts highprecision、longservice lifelow noisedual ball bearing |
| Insulation Class | Class A |
| Operating Temperature | -10℃-70℃ |
| Weight | 65g |
Applications
- Power Supply
- Heat Sink
- Frequency Inverter
- Measurement & Control Equipment
- automationequipmentwithandnew energyIndustryequipment。
Product Type
High Airflow Fan, Axial Fan, 8cmFan, Waterproof Fan
Dimension Drawings & Performance Curves

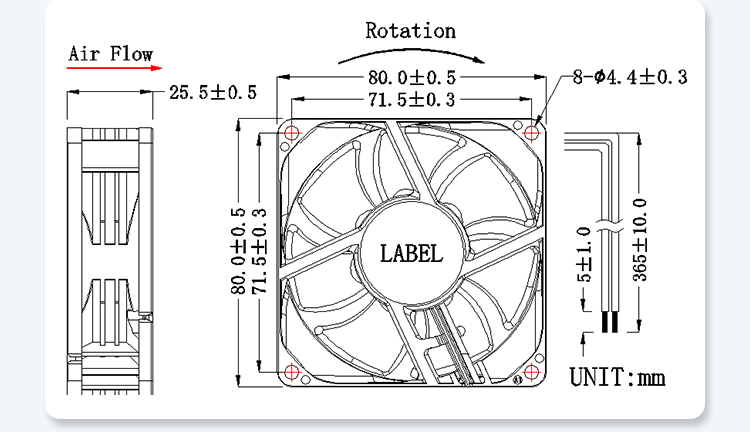

Dimension Drawing

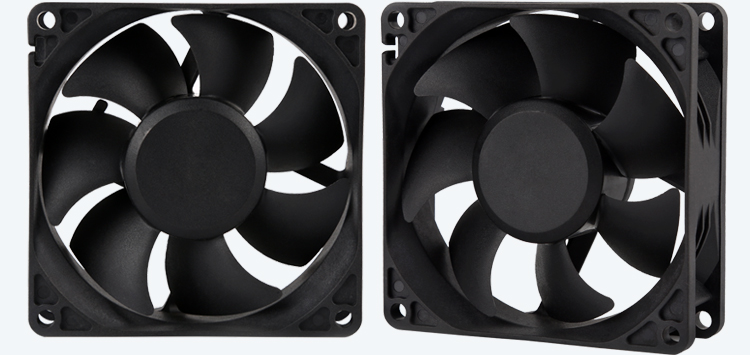

Real Photos

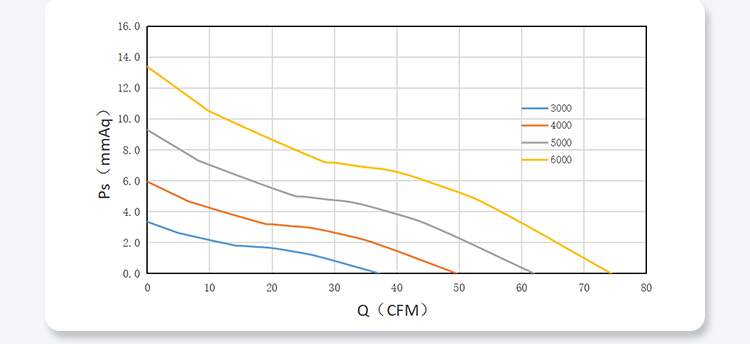

PQ Performance Curves

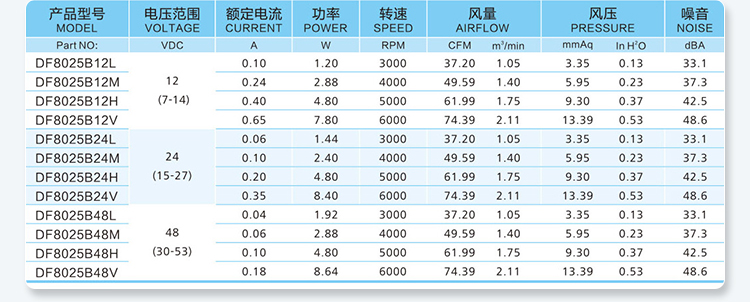

Parameter Table
Product Features & Advantages
Super Waterproof
Up to IPX8 (Optional Function)
Various waterproof processes including frame sealing, single-cup molding, high-temperature injection, and low-pressure vacuum meet IPX4, IPX5, IPX6, IPX7, and IPX8 ratings. Easily handles harsh environments such as indoor humidity, outdoor rain, coastal areas, and high temperature and high humidity conditions.

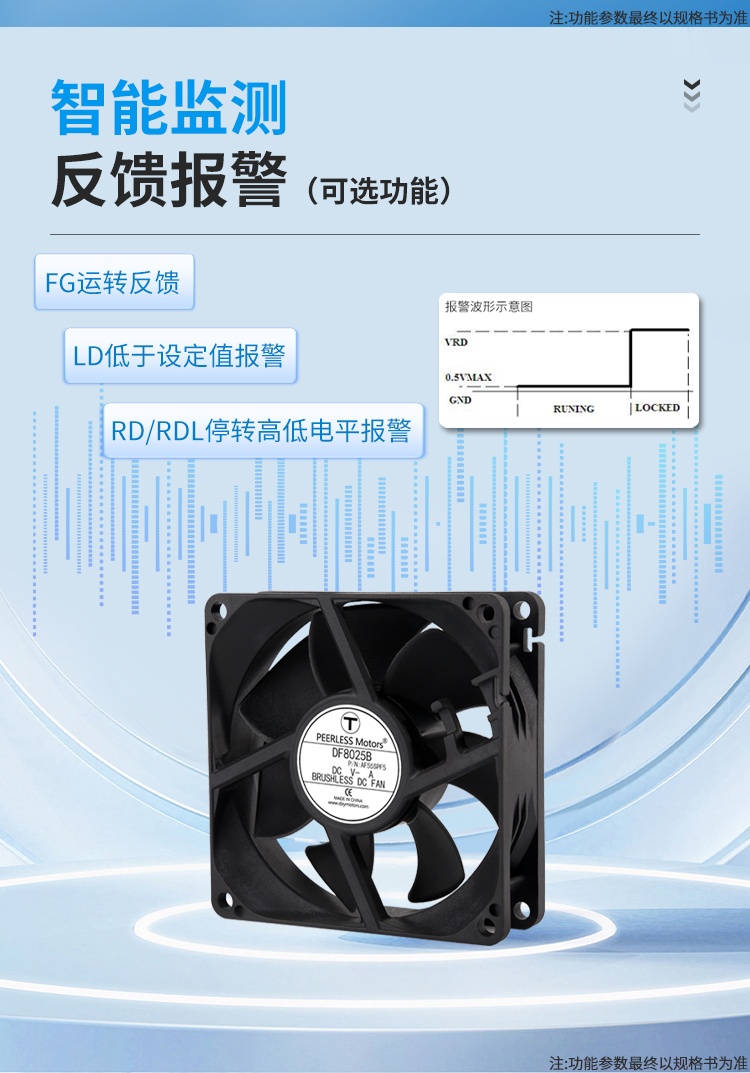

Intelligent Monitoring & Feedback Alarm
(Optional Function)

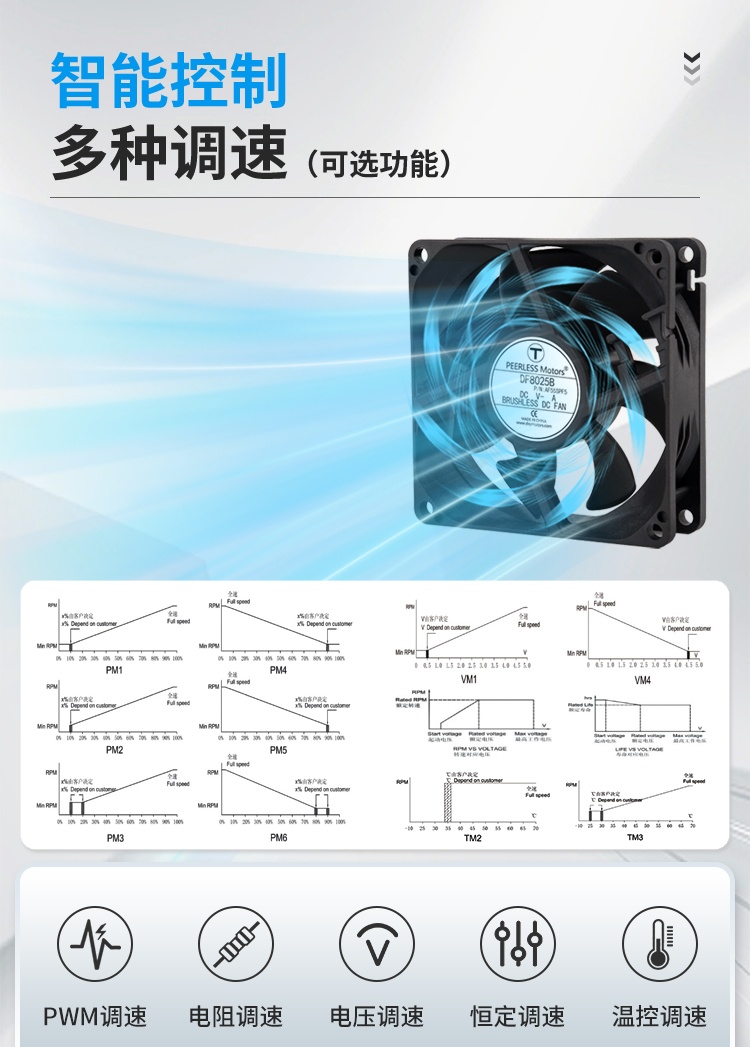

Smart Control – Multiple Speed Regulation
(Optional Function)

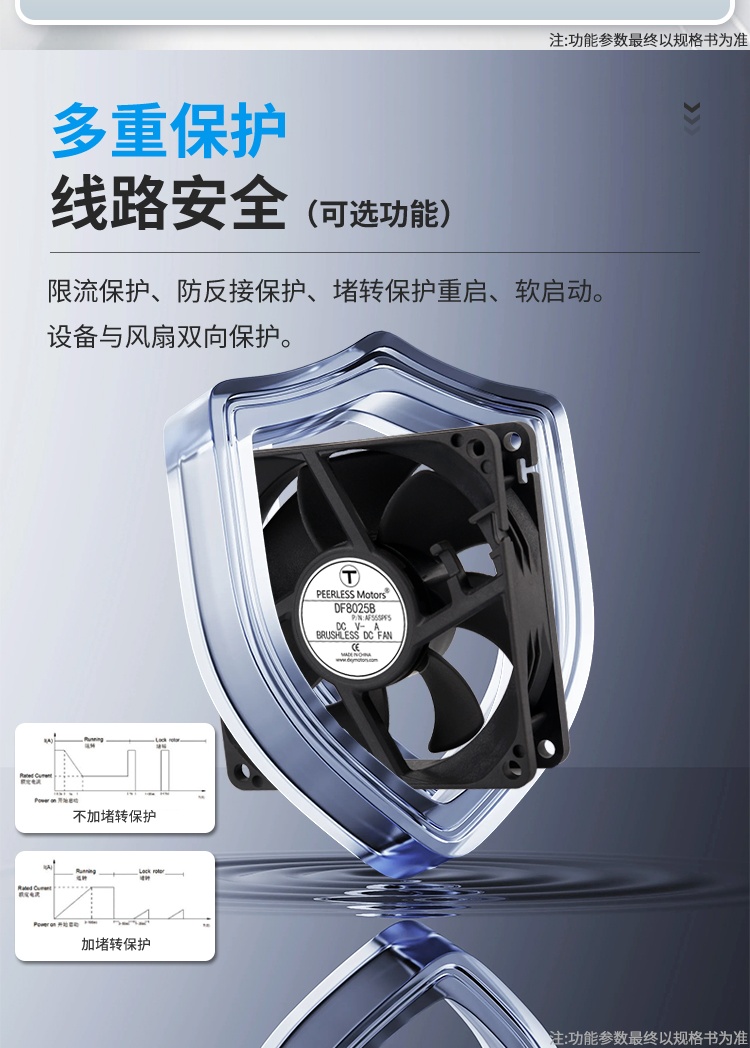

Multiple Protection – Circuit Safety
(Optional Function)
Current limiting protection, reverse connection protection, locked-rotor protection with auto-restart, and soft start. Bidirectional protection for both equipment and fan.
Fan Quality
Integrally molded eco-friendly fireproof PBT material with UL94V-0 fire rating. Anti-vibration, anti-corrosion, balanced hardness and toughness.
High-precision dual ball bearings with long service life, low noise, and low heat. 1.5-2.3x longer life than ordinary bearings.
5th gen upgraded DC brushless motor with high-efficiency control scheme. Excellent performance in lifespan, heat, power consumption, and load capacity.
Wide Applications
Need a Custom Solution?
Contact us for custom speed control, waterproof, or noise-reduction requirements.
