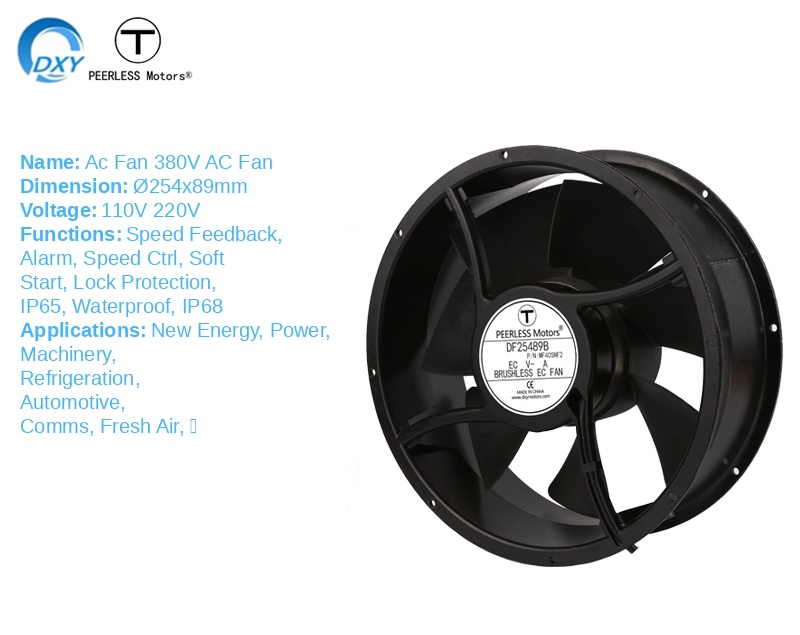

Ac Fan 380v AC Fan
AC axial fan offers dependable cooling with low energy consumption. Built with quality bearings, robust frame, and heat-resistant materials for continuous industrial operation.
Product Parameters
| Model | DF25489B24V |
| Size | 254x254x89MM |
| Voltage | 24V-48V |
| Speed | 2000-3000 RPM |
| Air Flow | 634.74-952.12 CFM static pressure ：14.52-32.66 mmAq |
| Noise | 55.8-66.8 dBA |
| Motor | DC Brushless Outer Rotor Motor |
| Insulation | Class A |
| Operating Temp | -10℃～70℃ |
| Protection | Reverse Polarity, Auto Restart |
Specifications
| Model | DF25489B24V |
| Name | Ac Fan 380v AC Fan |
| Size | 254x254x89MM |
| Voltage | 24V-48V |
| Speed | 2000-3000 RPM |
| Air Flow | 634.74-952.12 CFM static pressure ：14.52-32.66 mmAq |
| Noise | 55.8-66.8 dBA |
| Motor | DC Brushless Outer Rotor Motor |
| Impeller Material | Environmentally Friendly & Fire-resistantPBT bearing ：Dualball bearing |
| Insulation Class | Class A |
| Operating Temperature | -10℃～70℃ |
QUALITY CERTIFICATE | SUPER WATERPROOF | INTELLIGENT CONTROL
Applications
- Automation Equipment
- Industrial Equipment
- Cabinet Equipment
- Data Center Equipment
- Factory Production Equipment
- Large-format Printing Equipment
- Air Conditioning & Cold Chain
Product Type
Axial Fan, coolingBlower, Metal Fan, DC Fan, High Airflow Blower
Dimension Drawings & Performance Curves
Need a Custom Solution?
Contact us for custom speed control, waterproof, or noise-reduction requirements.
