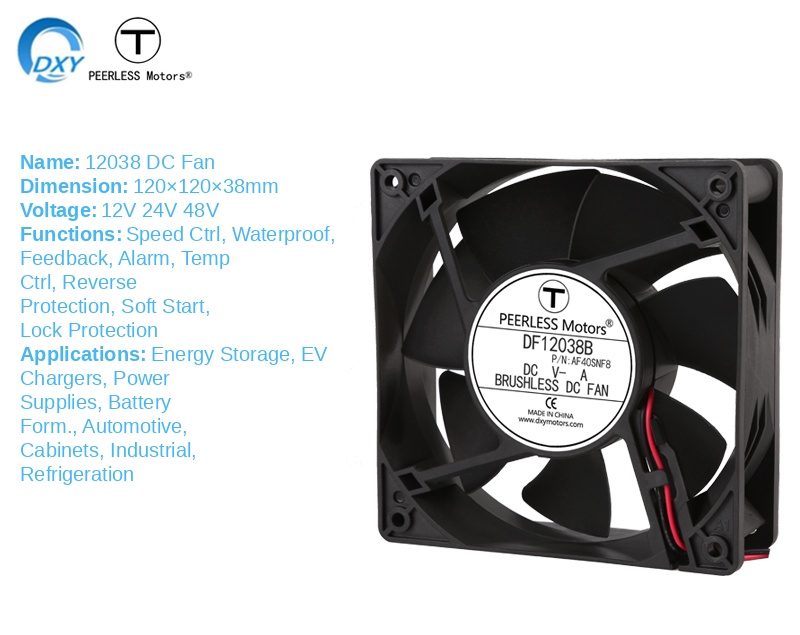

12038 DC Cooling Fan
12038 DC Fan
DC axial cooling fan features excellent airflow performance with low noise and vibration. Dual ball bearing design, pure copper motor, and PBT housing ensure long service life and stable operation.
Specifications
| Model | DF12038B48M |
| Name | 12038 DC Cooling Fan |
| Size | 120x120x38MM |
| Voltage | 12V-24V-48V |
| Speed | 2600–6500 RPM |
| Air Flow | 113.46–271.50CFM |
| Static Pressure | 8.41–48.21mmAq |
| Noise | 40.0–68.8dBA |
| Motor | DC Brushless Outer Rotor Motor |
| Frame Material | PBT 94V0 Eco-friendly & Fire-resistant |
| Impeller Material | PBT 94V0 Eco-friendly & Fire-resistant |
| Bearing | Dual Ball Bearing |
| Insulation Class | Class A |
| Operating Temperature | -10℃―70℃ |
| Weight | 380g |
Applications
- Telecom Cabinet
- Power Cabinet
- Energy Storage Power Supply
- PV Inverter
- Coastal Areas
- Outdoorequipmentetc.
Product Type
Waterproof Fan, Axial Fan, DC Fan, 12cmFan, Speed-controlled Fan
Dimension Drawings & Performance Curves

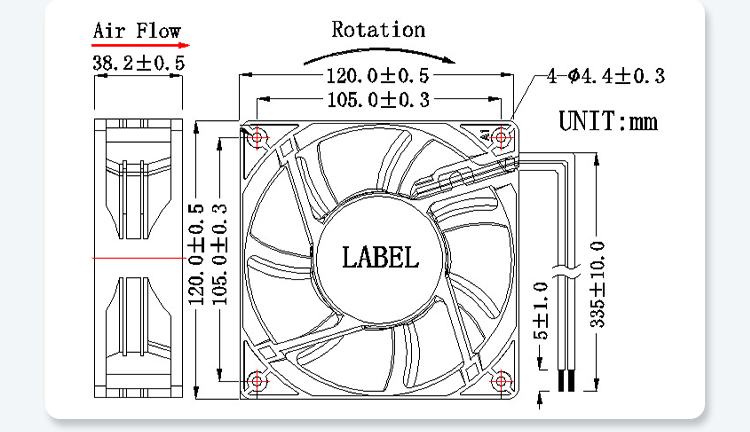

Dimension Drawing

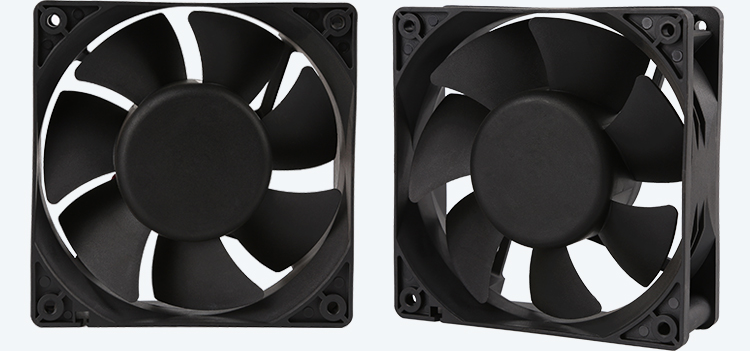

Real Photos

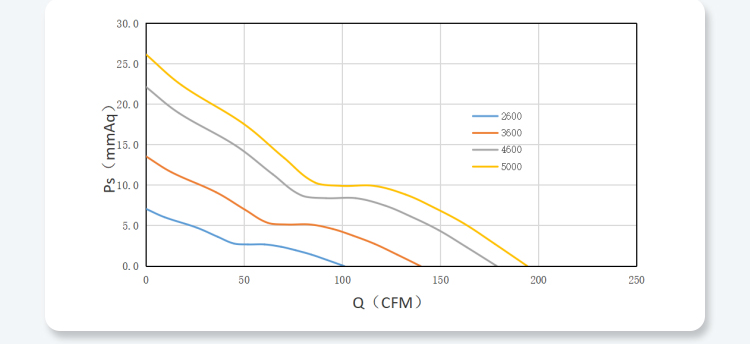

PQ Performance Curves

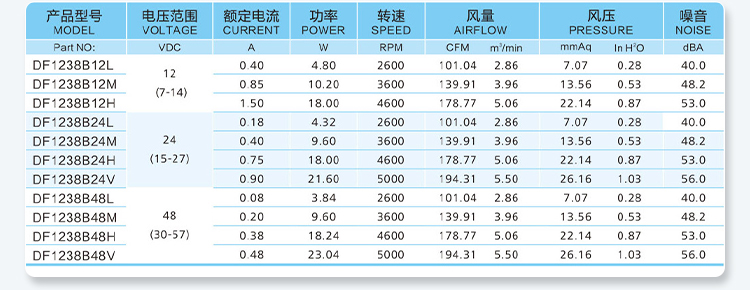

Parameter Table
Need a Custom Solution?
Contact us for custom speed control, waterproof, or noise-reduction requirements.
