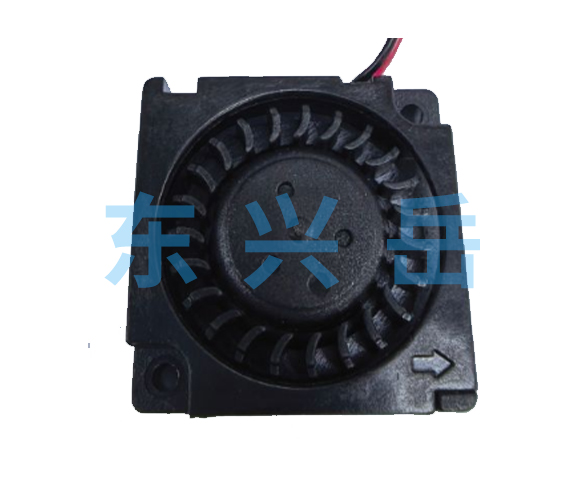

Db3510 DC Blower
DB DC blower delivers high airflow in a compact form factor. Equipped with precision dual ball bearings and pure copper winding motor for extended service life. Ideal for space-constrained cooling applications.
Specifications
| Model | DB3510 |
| Name | Db3510 DC Blower |

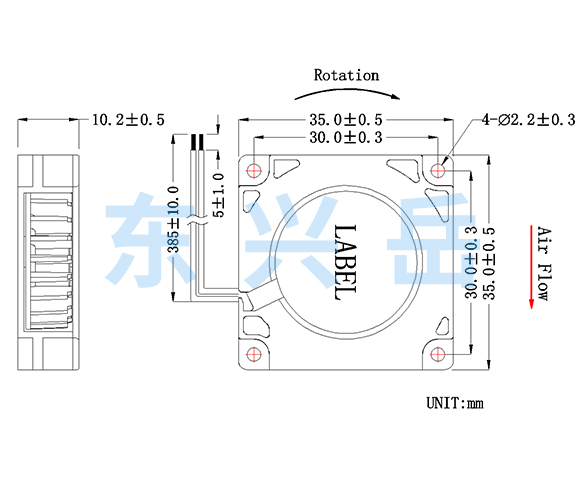

| Size | 35x35x10MM |
| Voltage | 12V-24V |

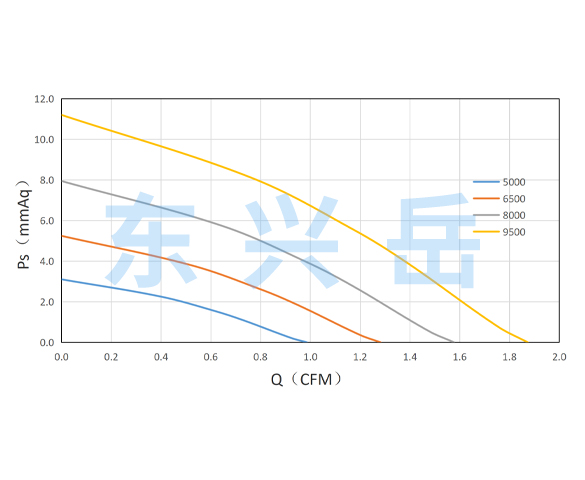

| Speed | 5000–9500 RPM |
| Air Flow | 0.99–1.87CFM |
| Static Pressure | 3.10–11.21mmAq |
| Noise | 26.0–34.0dBA |
| Motor | DC Brushless Outer Rotor Motor |
| Frame Material | PBT |
| Impeller Material | PBT |
| Bearing | Dual Ball Bearing |
| Insulation Class | Class A |
QUALITY CERTIFICATE | SUPER WATERPROOF | INTELLIGENT CONTROL
Applications
- Air Purifier
- Power Amplifier
- Security Equipment
- Monitoring Equipment etc.
Product Type
Axial Fan, DC Fan, 3.5CM
Product Features
12V Models (7~14VDC):
- DB3510B12L: 5000 RPM, 0.06A, 0.72W, Air Flow 0.99 CFM, Static Pressure 3.10 mmAq, Noise 26.0 dBA
- DB3510B12M: 6500 RPM, 0.10A, 1.20W, Air Flow 1.28 CFM, Static Pressure 5.25 mmAq, Noise 27.5 dBA
- DB3510B12H: 8000 RPM, 0.12A, 1.44W, Air Flow 1.58 CFM, Static Pressure 7.95 mmAq, Noise 30.0 dBA
- DB3510B12V: 9500 RPM, 0.16A, 1.92W, Air Flow 1.87 CFM, Static Pressure 11.21 mmAq, Noise 34.0 dBA
24V Models (15~27VDC):
- DB3510B24L: 5000 RPM, 0.03A, 0.72W, Air Flow 0.99 CFM, Static Pressure 3.10 mmAq, Noise 26.0 dBA
- DB3510B24M: 6500 RPM, 0.05A, 1.20W, Air Flow 1.28 CFM, Static Pressure 5.25 mmAq, Noise 27.5 dBA
- DB3510B24H: 8000 RPM, 0.06A, 1.44W, Air Flow 1.58 CFM, Static Pressure 7.95 mmAq, Noise 30.0 dBA
- DB3510B24V: 9500 RPM, 0.08A, 1.92W, Air Flow 1.87 CFM, Static Pressure 11.21 mmAq, Noise 34.0 dBA
Need a Custom Solution?
Contact us for custom speed control, waterproof, or noise-reduction requirements.
