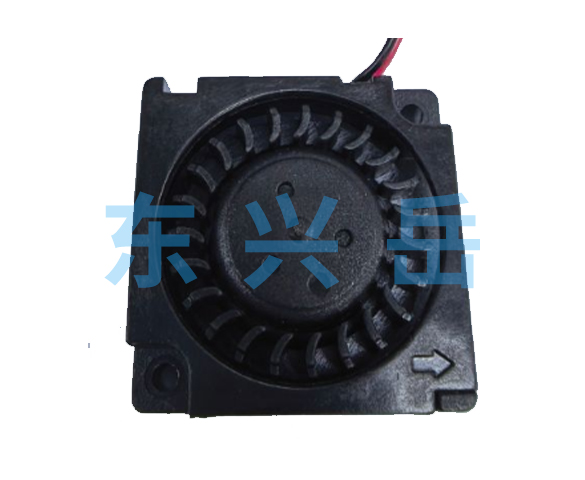

Db3010 DC Blower
DB DC blower delivers high airflow in a compact form factor. Equipped with precision dual ball bearings and pure copper winding motor for extended service life. Ideal for space-constrained cooling applications.
Specifications
| Model | DB3010 |
| Name | Db3010 DC Blower |
| Size | 30x30x10MM |
| Voltage | 12V-24V |
| Speed | 5000–9500 RPM |
| Air Flow | 0.59–1.12CFM |
| Static Pressure | 1.70–6.14mmAq |
| Noise | 25.0–33.0dBA |
| Motor | DC Brushless Outer Rotor Motor |
| Frame Material | PBT |
| Impeller Material | PBT |
| Bearing | Dual Ball Bearing |
| Insulation Class | Class A |
QUALITY CERTIFICATE | SUPER WATERPROOF | INTELLIGENT CONTROL
Applications
- Car Multimedia
- Car GPS
- Video Surveillance
- Power Amplifiers etc.
Product Type
Axial Fan, DC Fan, DC, 3cm
Dimension Drawings & Performance Curves
Need a Custom Solution?
Contact us for custom speed control, waterproof, or noise-reduction requirements.
