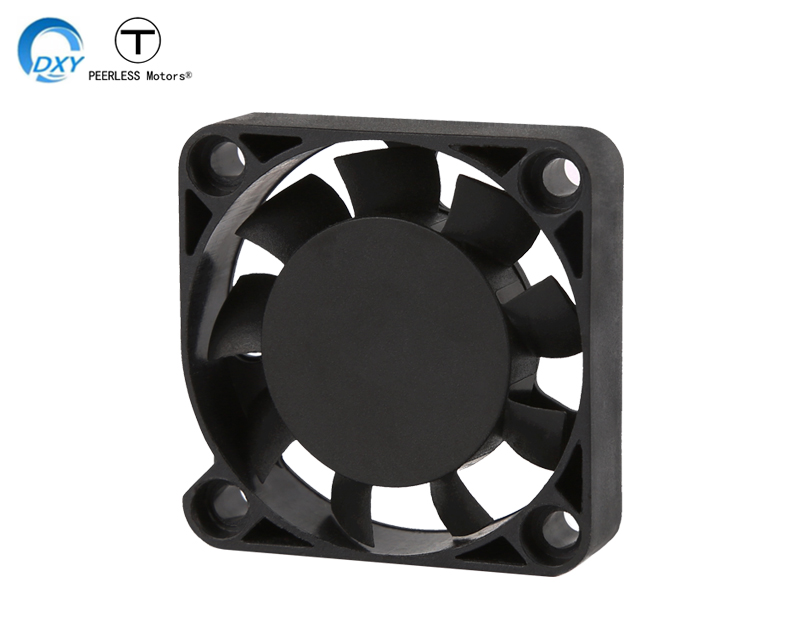

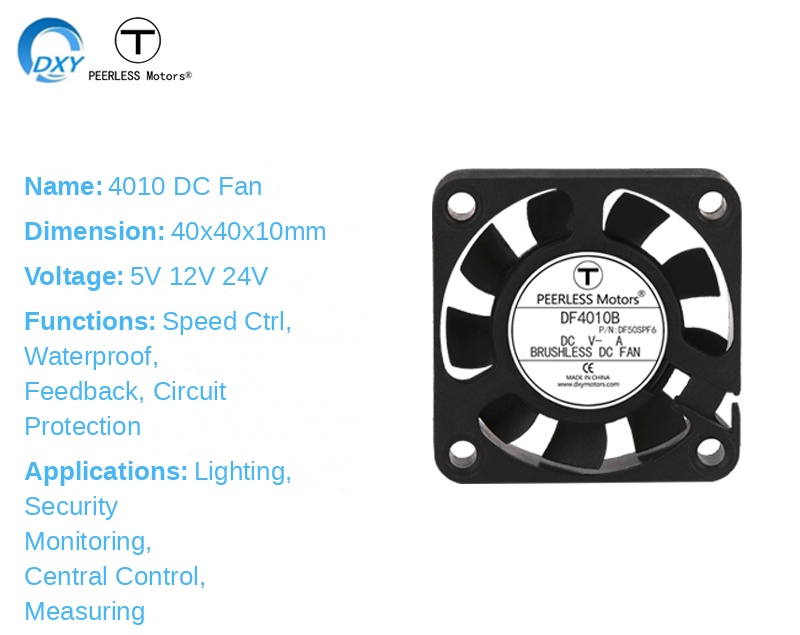

4010 DC Fan
DC axial cooling fan features excellent airflow performance with low noise and vibration. Dual ball bearing design, pure copper motor, and PBT housing ensure long service life and stable operation.
Specifications
| Model | DF4010B05L |
| Name | 4010 DC Fan |
| Size | 40x40x10MM Speed: 5000–8000 RPM |
| Voltage | 05V–24V |
| Air Flow | 5.13–8.09CFM |
| Static Pressure | 2.15–5.35mmAq |
| Noise | 29.5–39.1dBA |
| Motor | DC Brushless Outer Rotor Motor |
| Frame Material | PBT |
| Impeller Material | PBT Bearing System: Sleeve / Dual Ball Bearing |
| Insulation Class | Class A |
| Operating Temperature | -10℃―70℃ |
| Weight | 15g |
Applications
- Smart Home Appliances
- Robotics
- Air Purifieretc.equipment
Product Type
Axial Fan, DC Fan, dcFan, 4cm
Dimension Drawings & Performance Curves

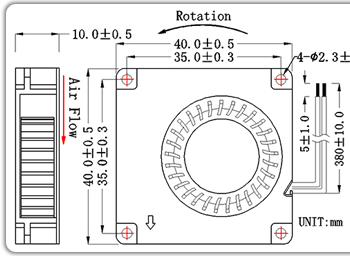

Dimension Drawing

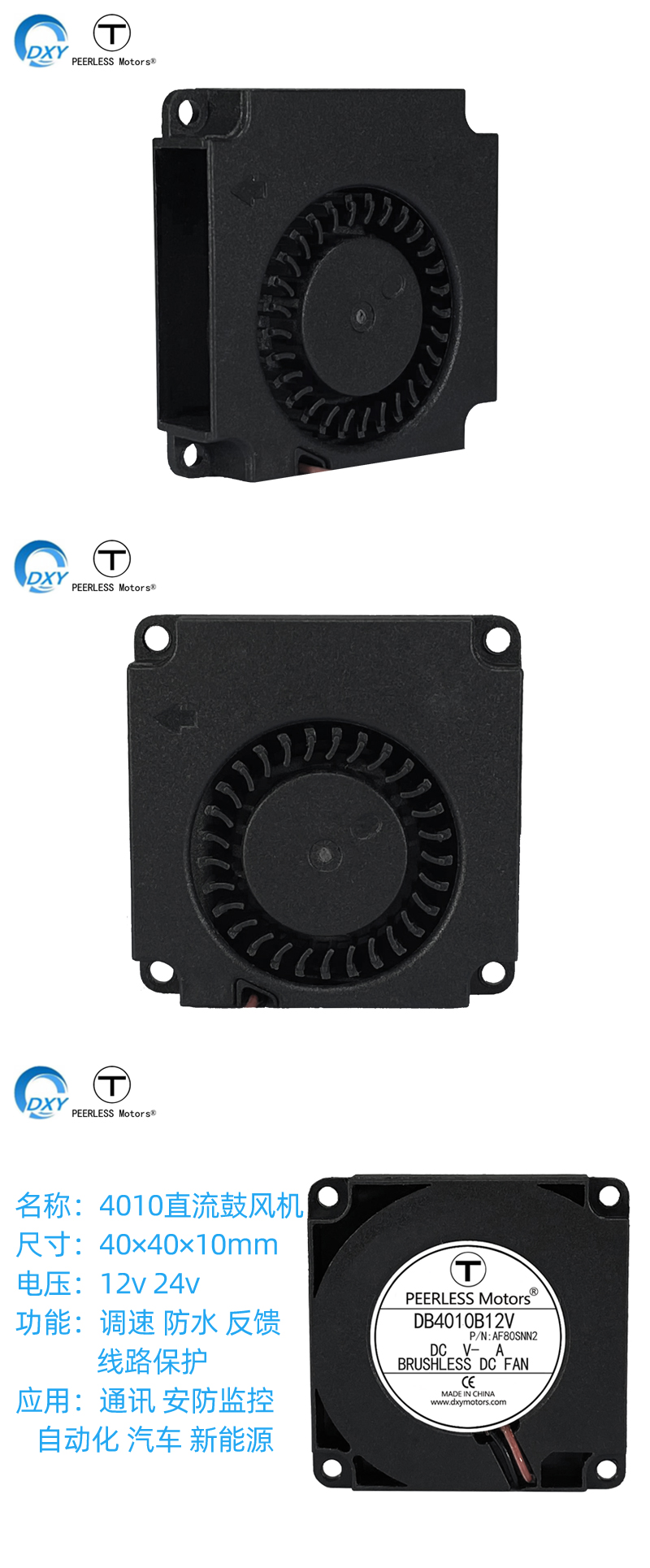

Real Photos

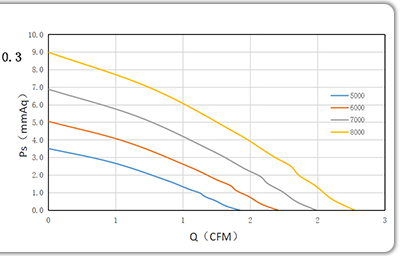

PQ Performance Curves

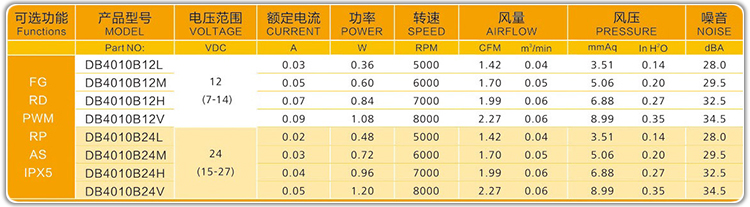

Parameter Table
Need a Custom Solution?
Contact us for custom speed control, waterproof, or noise-reduction requirements.
