5010 DC Fan
DC axial cooling fan features excellent airflow performance with low noise and vibration. Dual ball bearing design, pure copper motor, and PBT housing ensure long service life and stable operation.
Specifications
| Model | DF5010B12V |
| Name | 5010 DC Fan |
| Size | 50x50x10MM |
| Voltage | 05V、12V、24V |
| Speed | 3200-7500 RPM |
| Air Flow | 5.90-13.82CFM |
| Static Pressure | 0.99-5.43mmAq |
| Noise | 18.5-37.0dBA |
| Motor | DC Brushless Outer Rotor Motor |
| Frame Material | PBT |
| Impeller Material | PBT |
| Bearing | Dual Ball Bearing |
| Insulation Class | Class A |
| Operating Temperature | -10℃-70℃ |
| Weight | 17g |
Applications
- Beauty Equipment
- Home Appliance Industry
- Calibration Instruments
- Projectors etc.
Product Type
Axial Fan, DC Fan, DC, 5cm
Dimension Drawings & Performance Curves

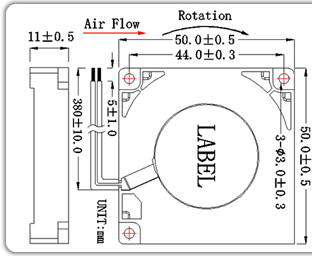

Dimension Drawing

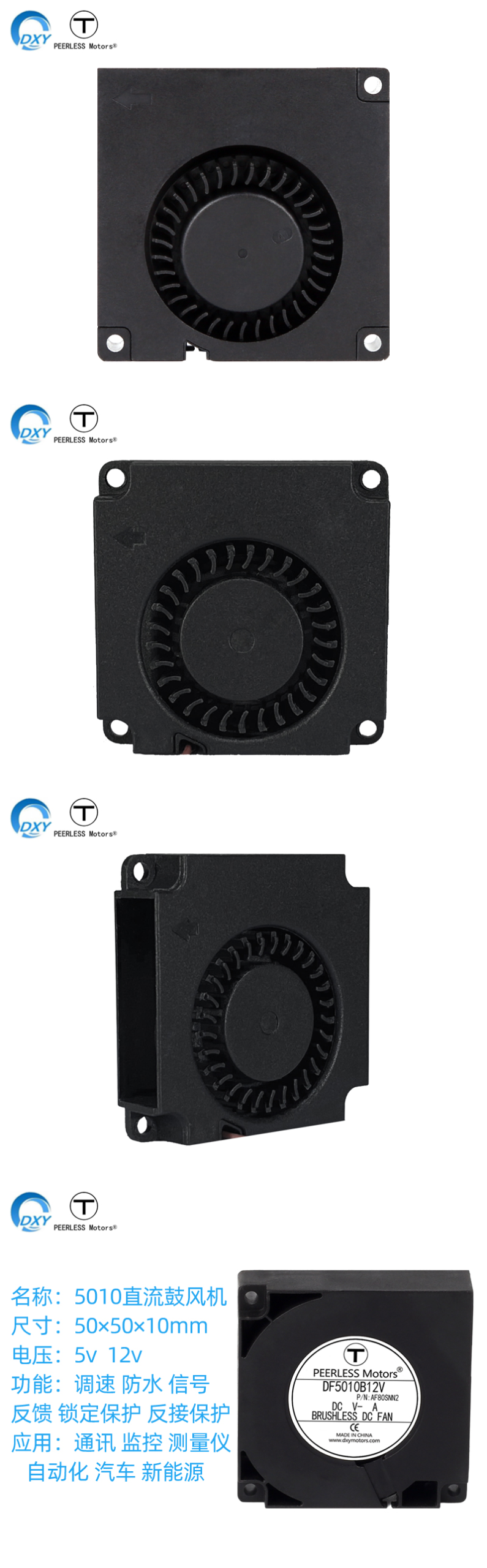

Real Photos

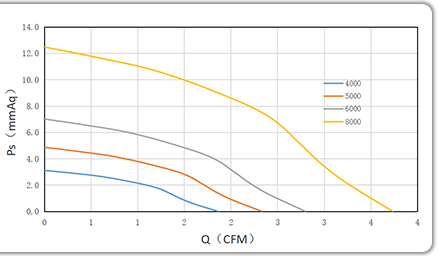

PQ Performance Curves

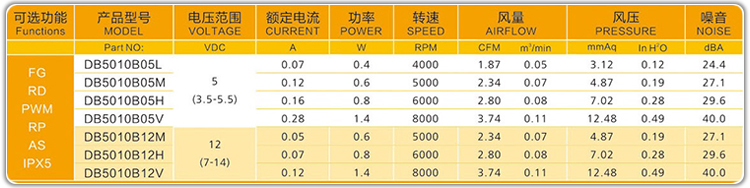

Parameter Table
Need a Custom Solution?
Contact us for custom speed control, waterproof, or noise-reduction requirements.
