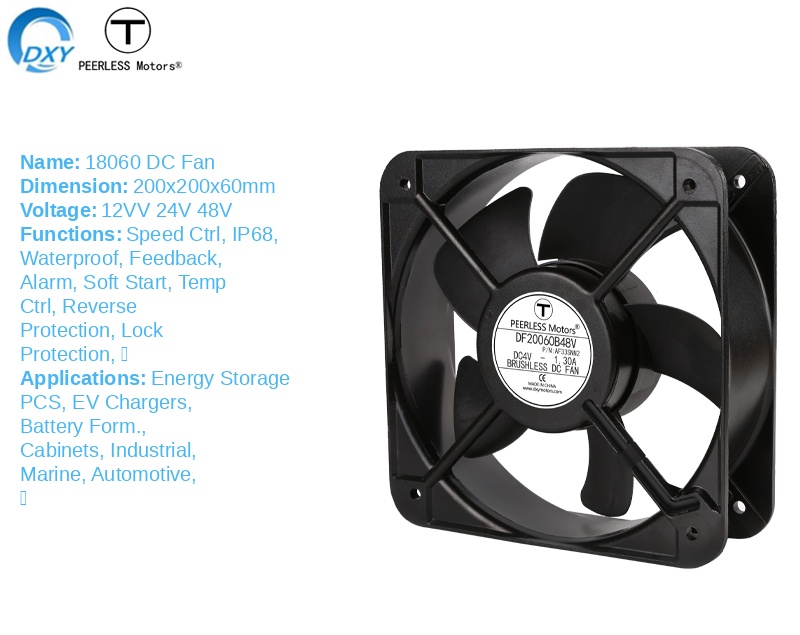

18060 DC Fan
DC axial cooling fan features excellent airflow performance with low noise and vibration. Dual ball bearing design, pure copper motor, and PBT housing ensure long service life and stable operation.
Specifications
| Model | DF20060B24v |
| Name | 18060 DC Fan |
| Size | 200x200x60MM |
| Voltage | 12V-24v-48V |
| Speed | 1600-3300 RPM |
| Air Flow | 291.79-601.82 CFM |
| Static Pressure | 5.90-25.10 mmAq Noise: 42.0-61.7 dBA |
| Motor | DC Brushless Outer Rotor Motor |
| Frame Material | Aluminum Alloy |
| Impeller Material | PBT |
| Bearing | Dual Ball Bearing |
| Insulation Class | Class A |
| Operating Temperature | -10℃~70℃ |
Applications
- Cabinet Equipment
- Energy Storage Equipment
- Industrial Equipment
- Automation Equipment
- New Energy Test System
- FactoryPlasticControlequipmentetc.
Product Type
MetalFan, 20cmFan, Axial Fan, DC Fan, DCFan, High Airflow Fan, Speed-controlled Fan
Dimension Drawings & Performance Curves
Dimension Drawing

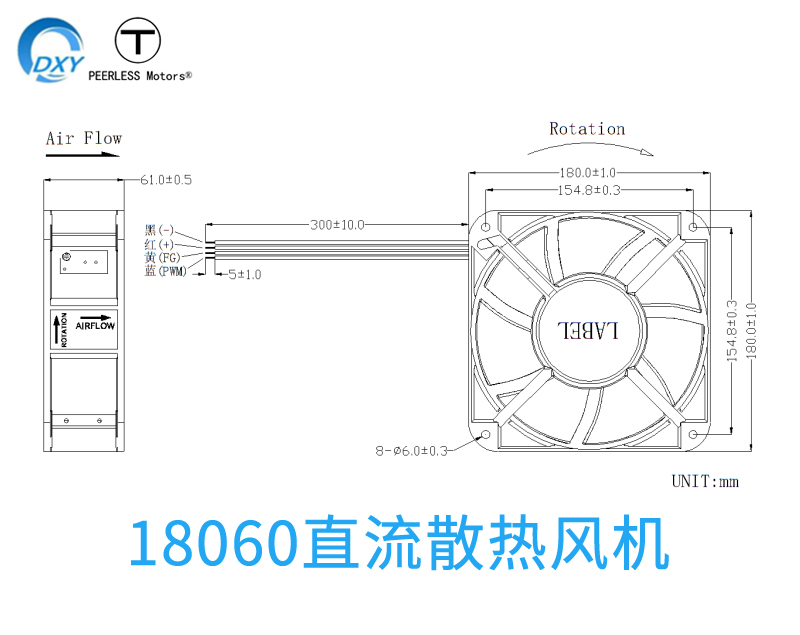

Real Photos
PQ Performance Curves

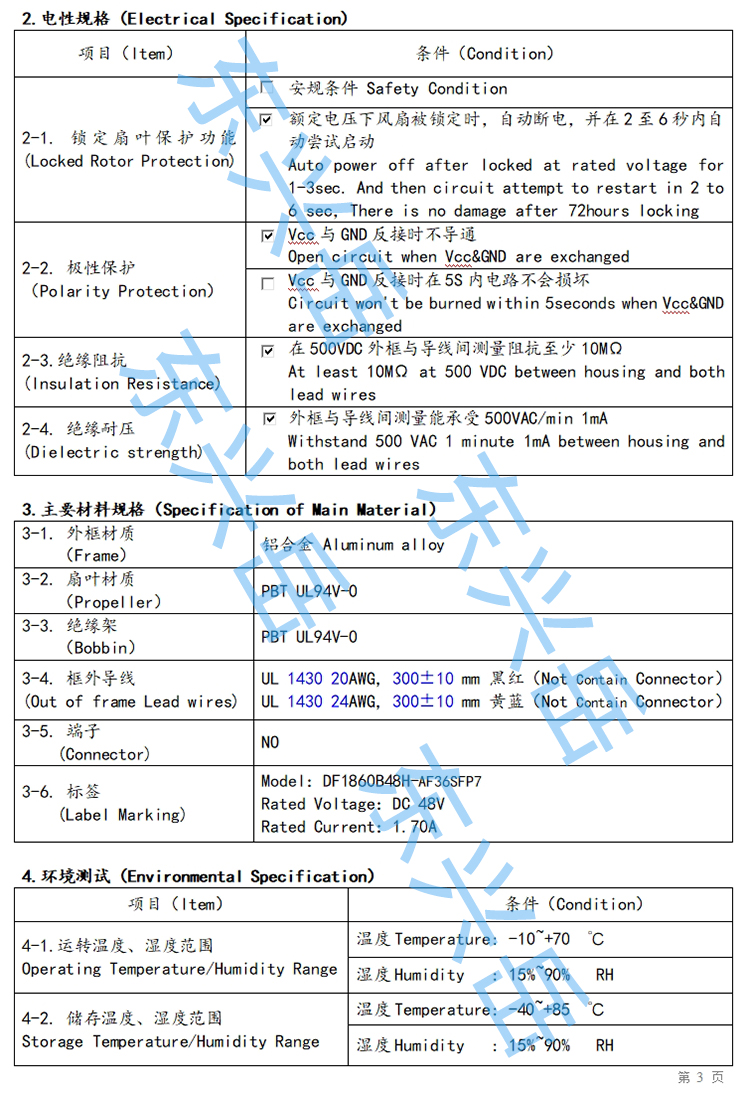

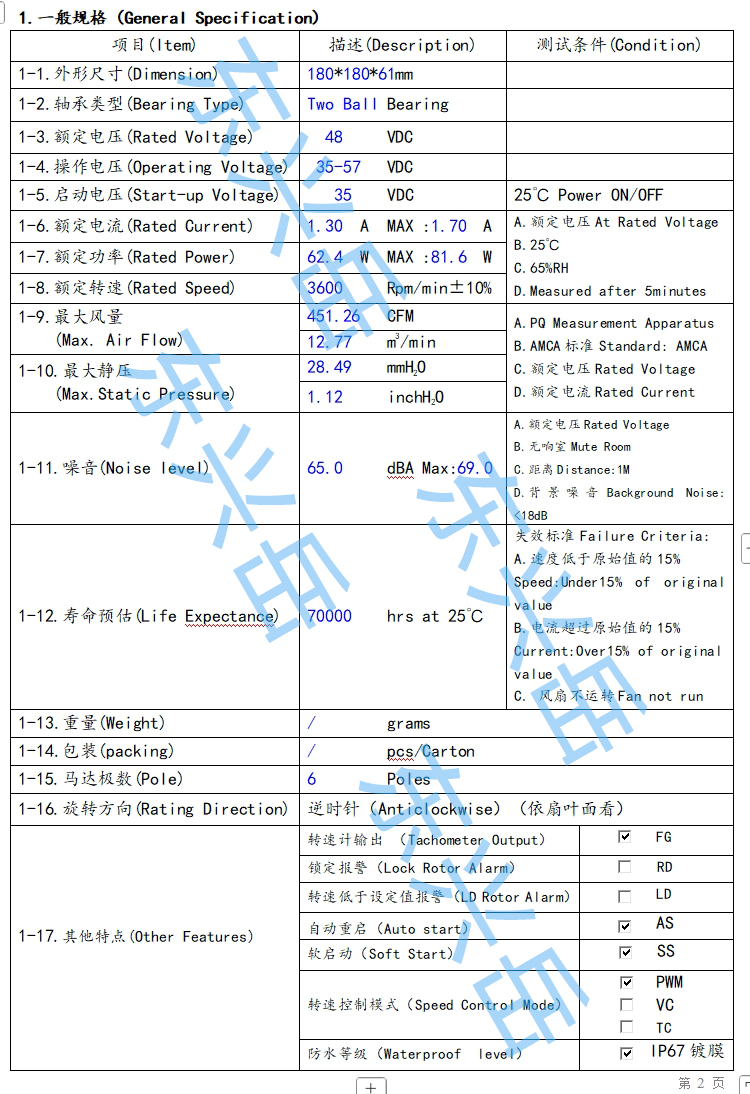

Parameter Table
