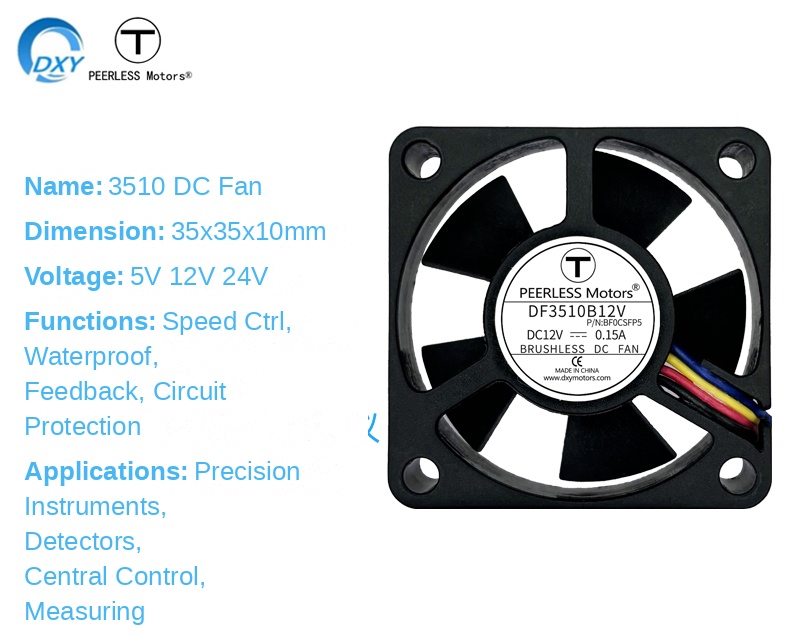

3510 DC Fan
DC axial cooling fan features excellent airflow performance with low noise and vibration. Dual ball bearing design, pure copper motor, and PBT housing ensure long service life and stable operation.
Specifications
| Model | DF3510B05L |
| Name | 3510 DC Fan |
| Size | 35x35x10MM speed ：6000-12000 RPM |
| Voltage | 05V-12v-24V |
| Air Flow | 3.33-6.66 CFM static pressure ：1.55-6.19 mmAq Noise: 27.0-35.5 dBA |
| Motor | DC Brushless Outer Rotor Motor |
| Frame Material | PBT Impeller: PBT Bearing System: Dual Ball Bearing, Long-life Sleeve FDB |
| Impeller Material | PBT Impeller: PBT Bearing System: Dual Ball Bearing, Long-life Sleeve FDB |
| Insulation Class | Agrade |
| Operating Temperature | -10℃-70 ℃ |
Applications
- Air Purifier
- Power Amplifier
- Security Equipment
- monitoringequipmentetc.
Product Type
Axial Fan, DC Fan, 3.5CM
Dimension Drawings & Performance Curves

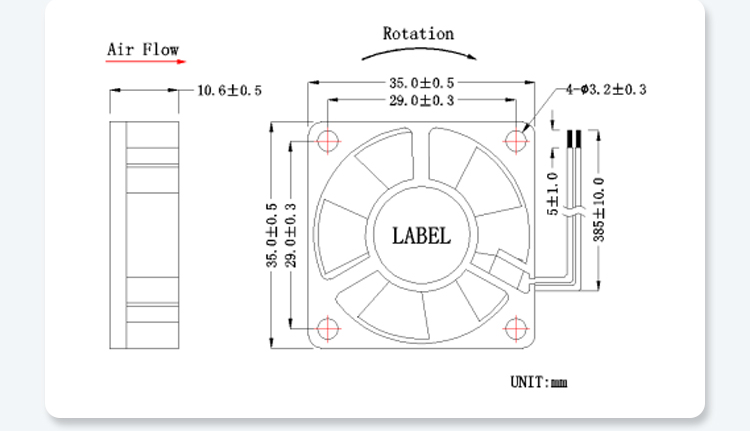

Dimension Drawing

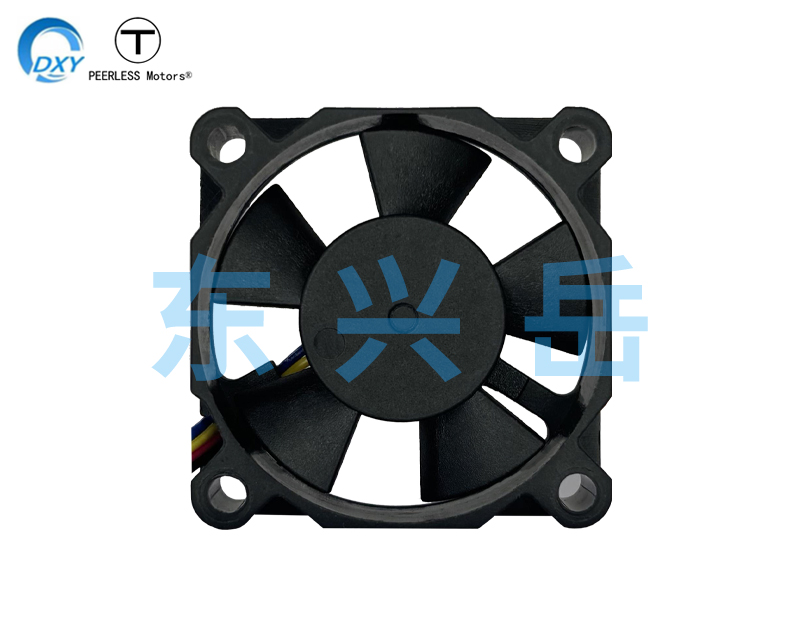

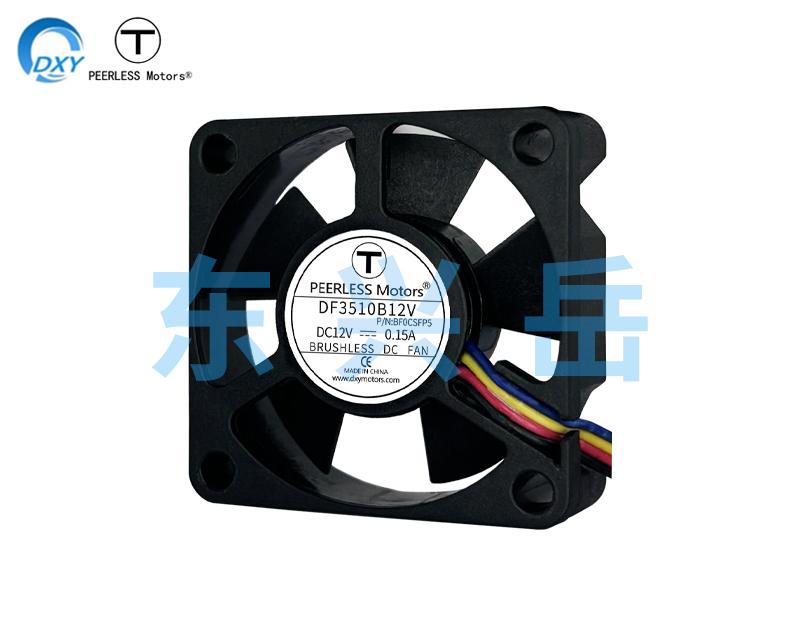

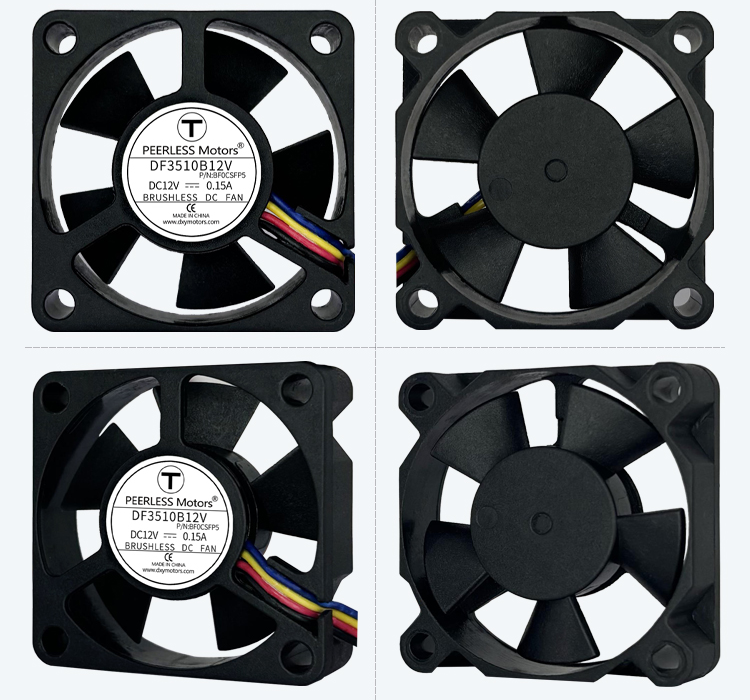

Real Photos

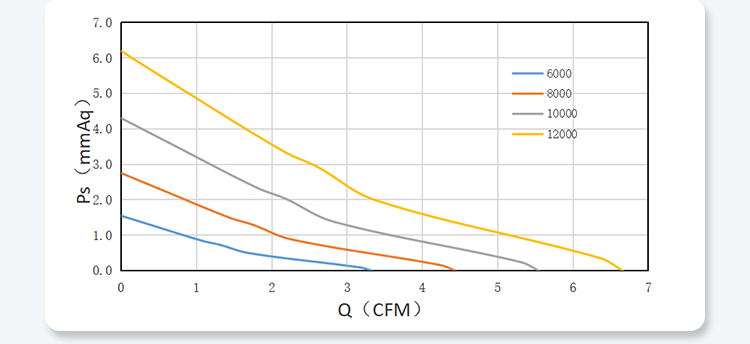

PQ Performance Curves

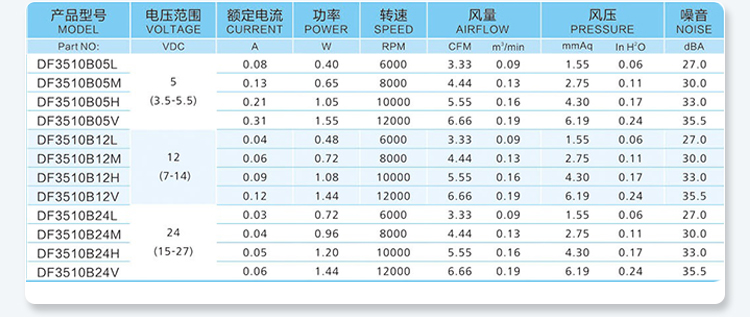

Parameter Table
Product Features & Advantages

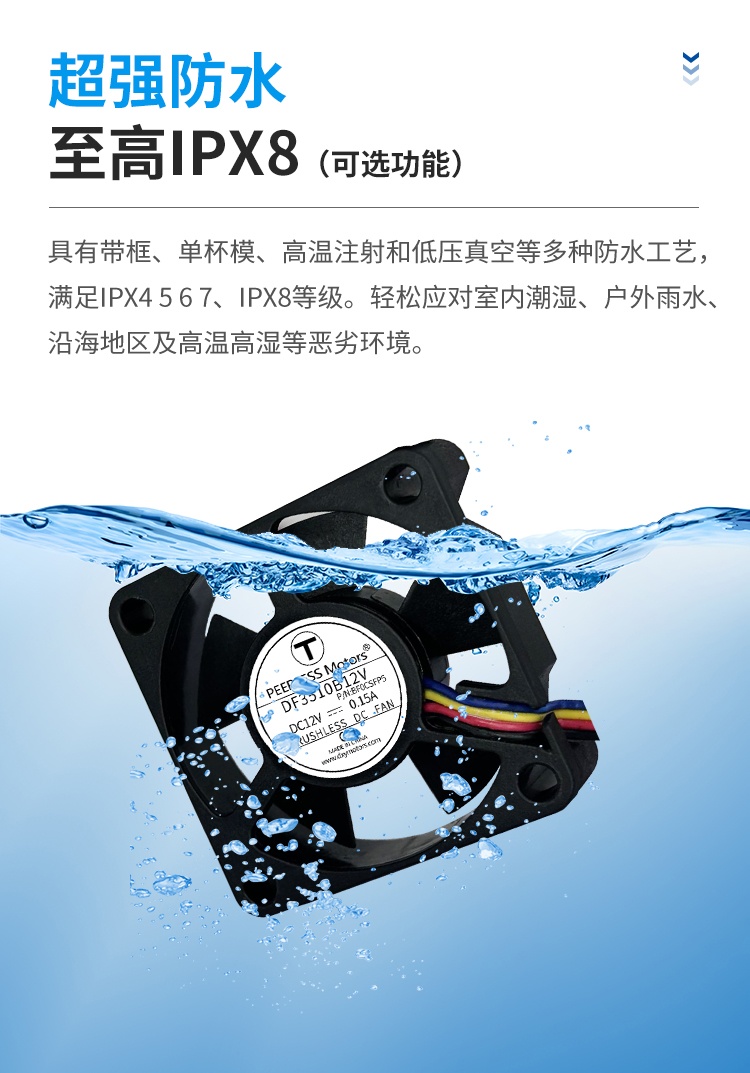

Super Waterproof
Up to IPX8 (Optional Function)
Various waterproof processes including frame sealing, single-cup molding, high-temperature injection, and low-pressure vacuum meet IPX4, IPX5, IPX6, IPX7, and IPX8 ratings. Easily handles harsh environments such as indoor humidity, outdoor rain, coastal areas, and high temperature and high humidity conditions.
Intelligent Monitoring & Feedback Alarm
(Optional Function)

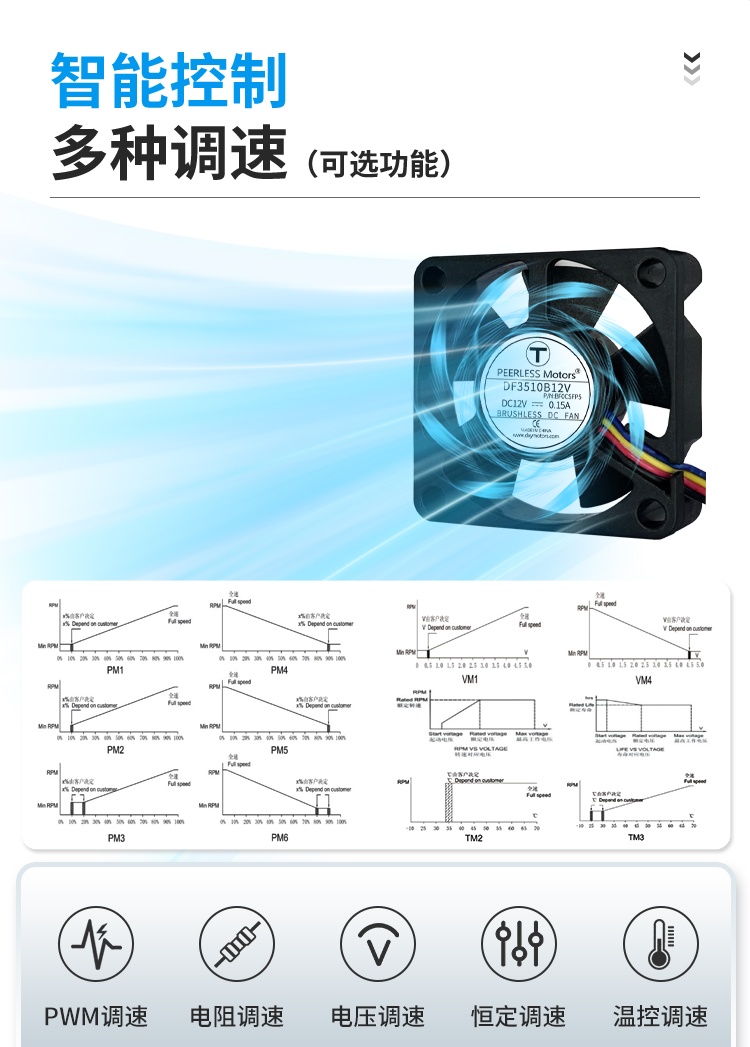

Smart Control – Multiple Speed Regulation
(Optional Function)

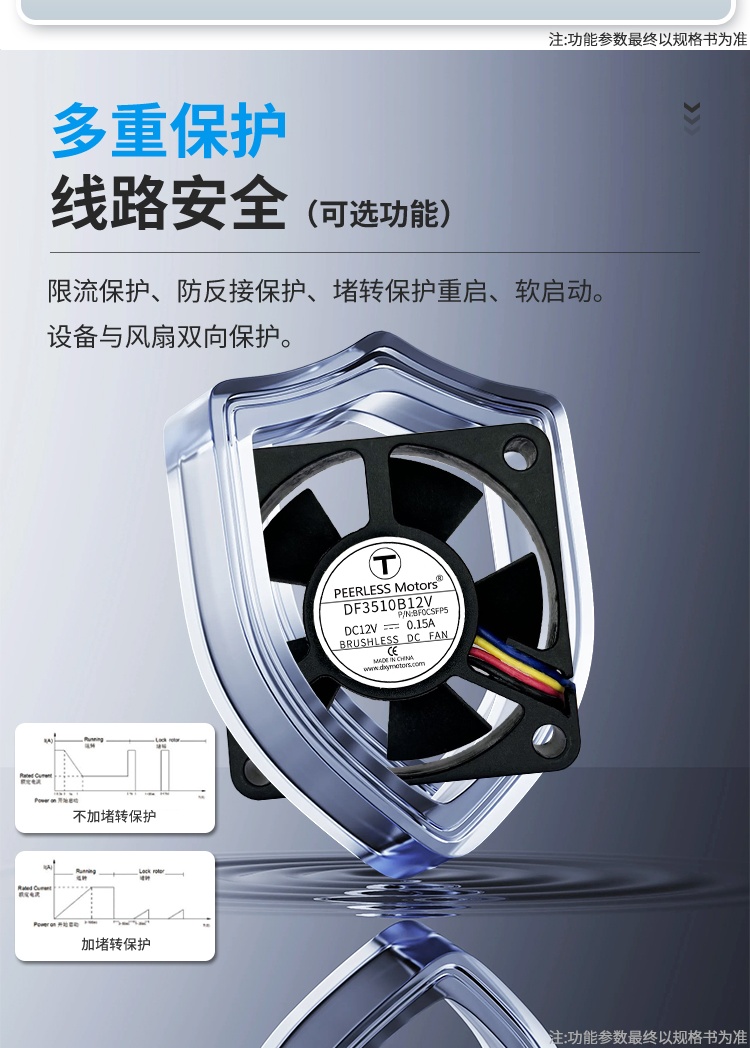

Multiple Protection – Circuit Safety
(Optional Function)
Current limiting protection, reverse connection protection, locked-rotor protection with auto-restart, and soft start. Bidirectional protection for both equipment and fan.

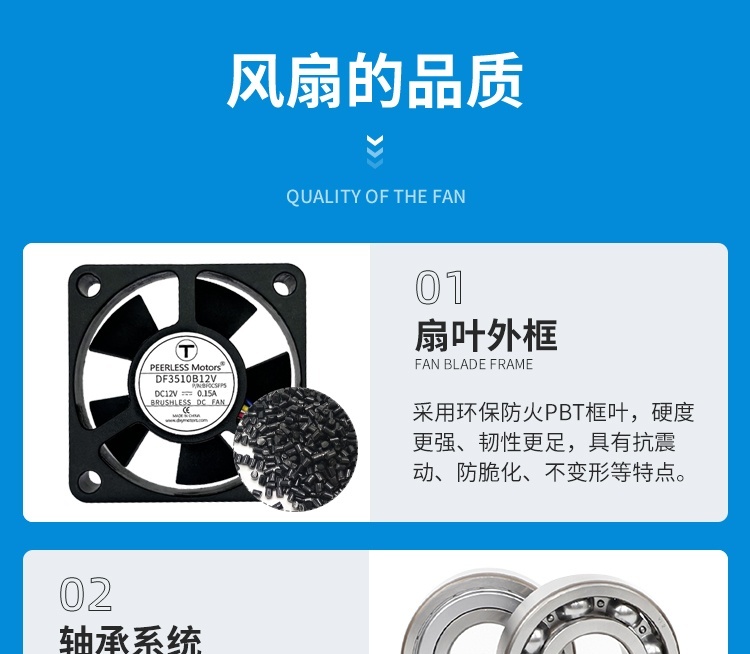

Fan Quality
Integrally molded eco-friendly fireproof PBT material with UL94V-0 fire rating. Anti-vibration, anti-corrosion, balanced hardness and toughness.
High-precision dual ball bearings with long service life, low noise, and low heat. 1.5-2.3x longer life than ordinary bearings.
5th gen upgraded DC brushless motor with high-efficiency control scheme. Excellent performance in lifespan, heat, power consumption, and load capacity.
Wide Applications
Need a Custom Solution?
Contact us for custom speed control, waterproof, or noise-reduction requirements.
