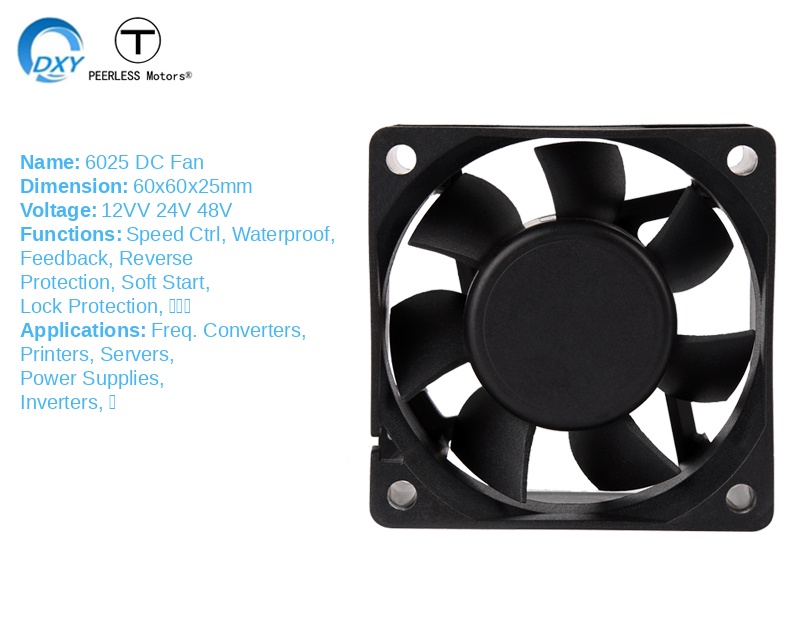

6025 DC Fan
DC axial cooling fan features excellent airflow performance with low noise and vibration. Dual ball bearing design, pure copper motor, and PBT housing ensure long service life and stable operation.
Specifications
| Model | DF6025B12V |
| Name | 6025 DC Fan |
| Size | 60x60x25MM |
| Voltage | 12V-48V |
| Speed | 3500-8500 RPM |
| Air Flow | 18.80-45.67 CFM |
| Static Pressure | 2.79-16.43 mmAq |
| Noise | 29.5-52.3 dBA |
| Motor | DC Brushless Outer Rotor Motor |
| Frame Material | PBT |
| Impeller Material | PBT |
| Bearing | Dual Ball Bearing |
| Insulation Class | Class A |
| Operating Temperature | -10℃~70℃ |
| Weight | 55g |
Applications
- Battery Charger
- EV Charger
- Robotics
- Monitoring Equipment
Product Type
Axial Fan, DC Fan, 6cm, Waterproof Fan, Quiet Fan, Power Supply Fan
Dimension Drawings & Performance Curves

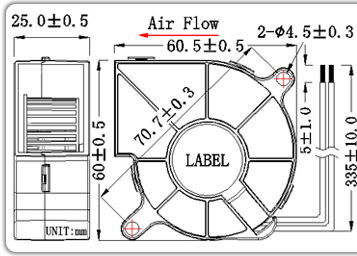

Dimension Drawing

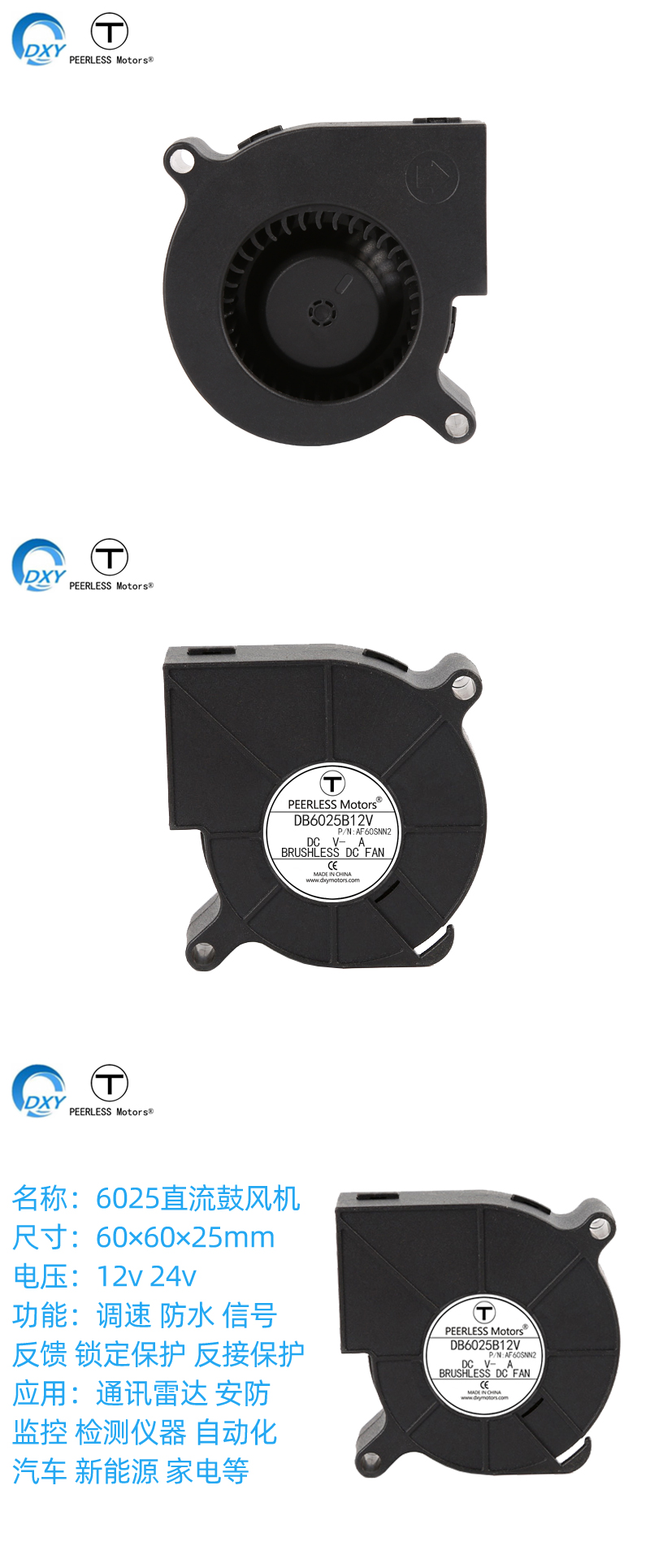

Real Photos

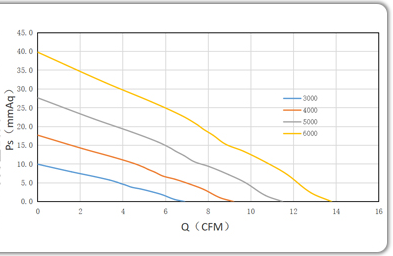

PQ Performance Curves

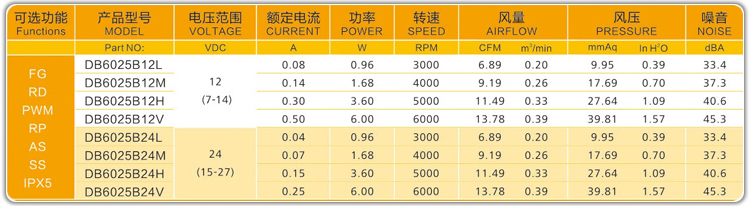

Parameter Table
Need a Custom Solution?
Contact us for custom speed control, waterproof, or noise-reduction requirements.
