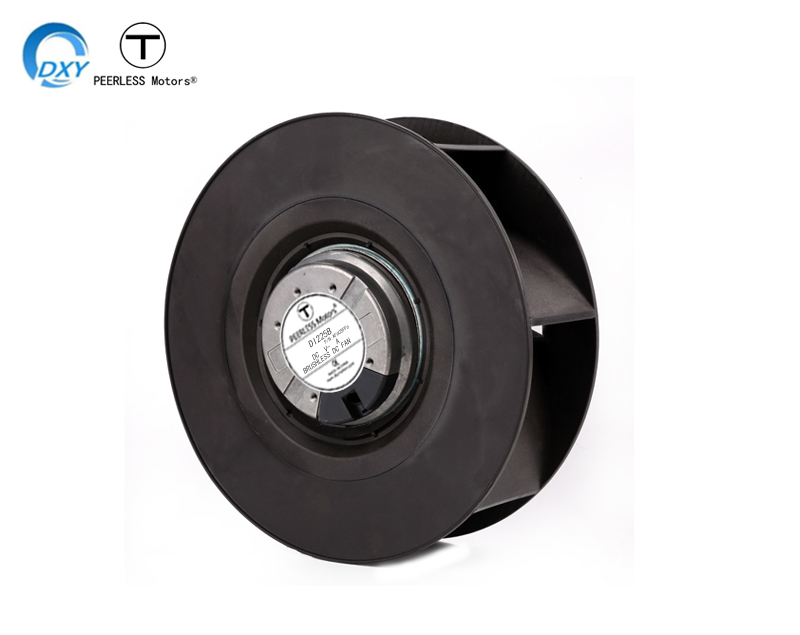

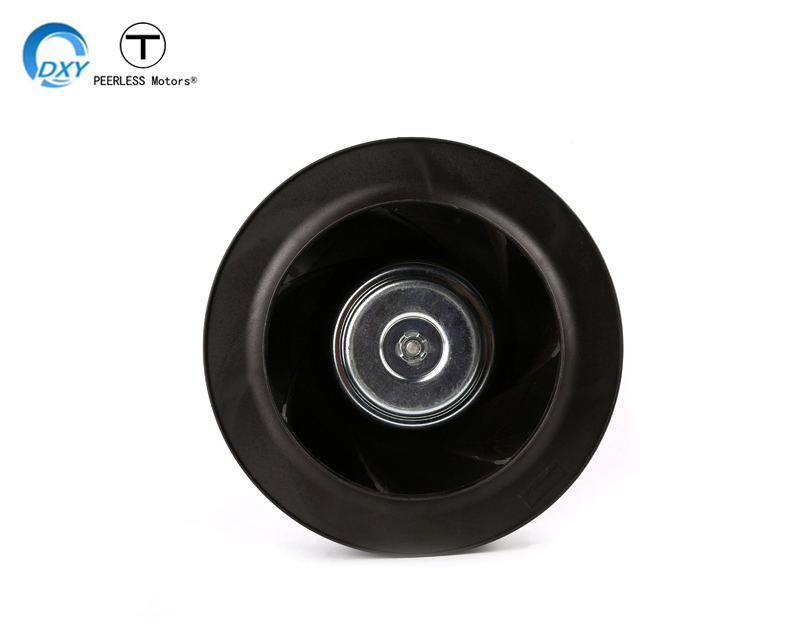

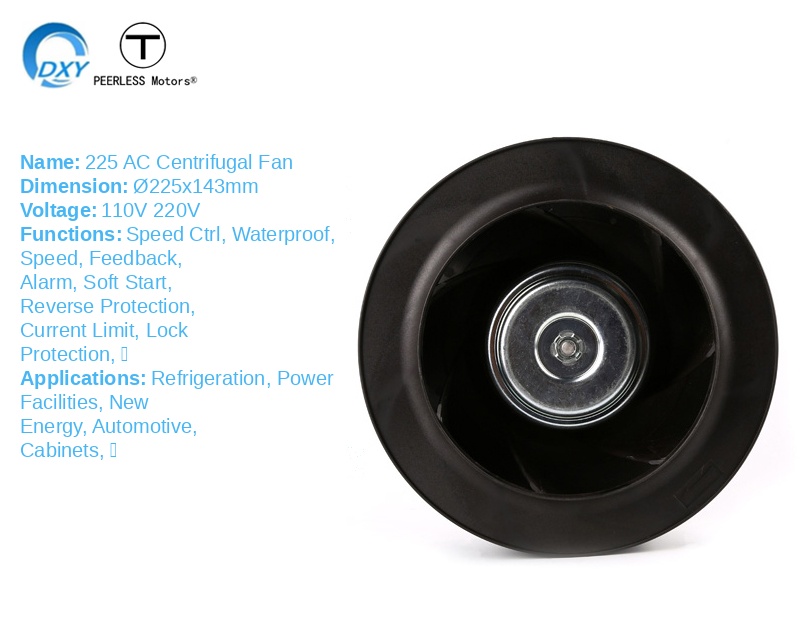

225ec Centrifugal Fan
EC centrifugal fan combines energy-efficient EC technology with advanced aerodynamic design. Delivers high airflow, low noise, and intelligent speed control for HVAC and industrial applications.
Specifications
| Name | 225E CCentrifugal Fan |
| Size | 225*143mm |
| Voltage | 110v-220V |
| Speed | 1800-2800 RPM |
| Air Flow | 411.11-639.50 CFM |
| Static Pressure | 20.98-50.76 mmAq |
| Frame Material | Aluminum |
| Impeller Material | PBT |
| Bearing | High-precision Dual Ball Bearing |
| Insulation Class | Class A |
| Operating Temperature | -10℃~70℃ |
QUALITY CERTIFICATE | SUPER WATERPROOF | INTELLIGENT CONTROL
Applications
- Chassis & Cabinet
- Power Equipment
- Industrial Equipment
Product Type
Centrifugal Fan, Centrifugal Fan

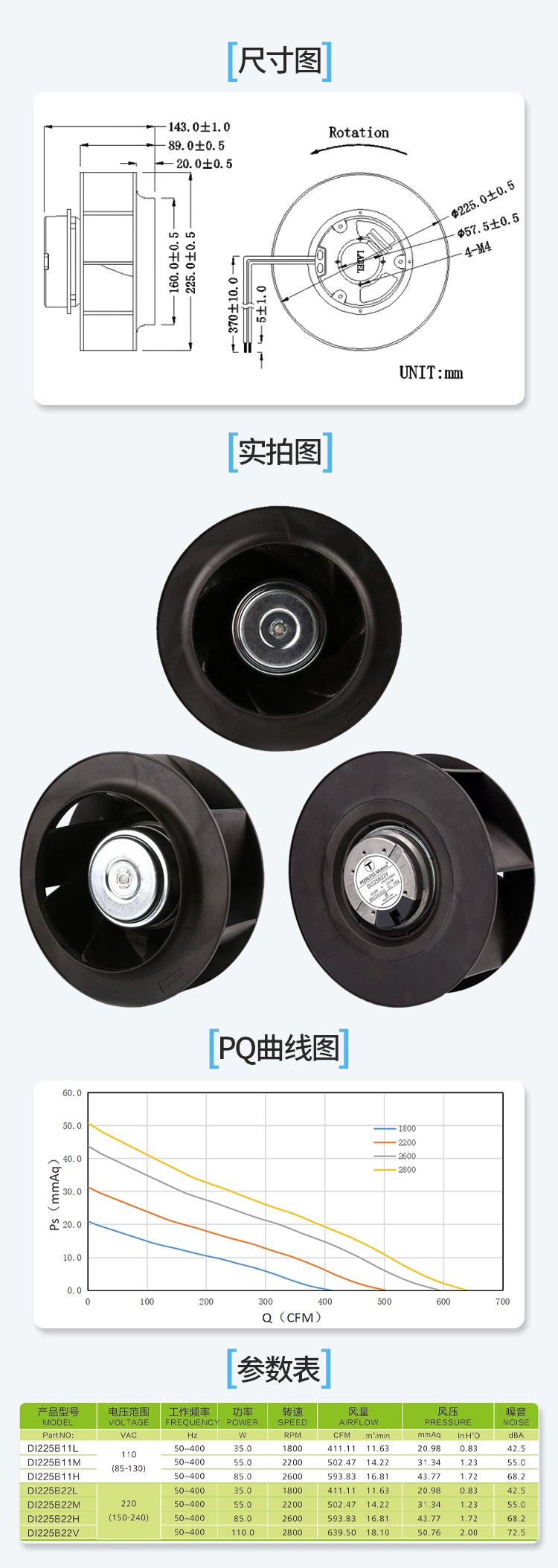

Dimension Drawings & Performance Curves
Need a Custom Solution?
Contact us for custom speed control, waterproof, or noise-reduction requirements.
