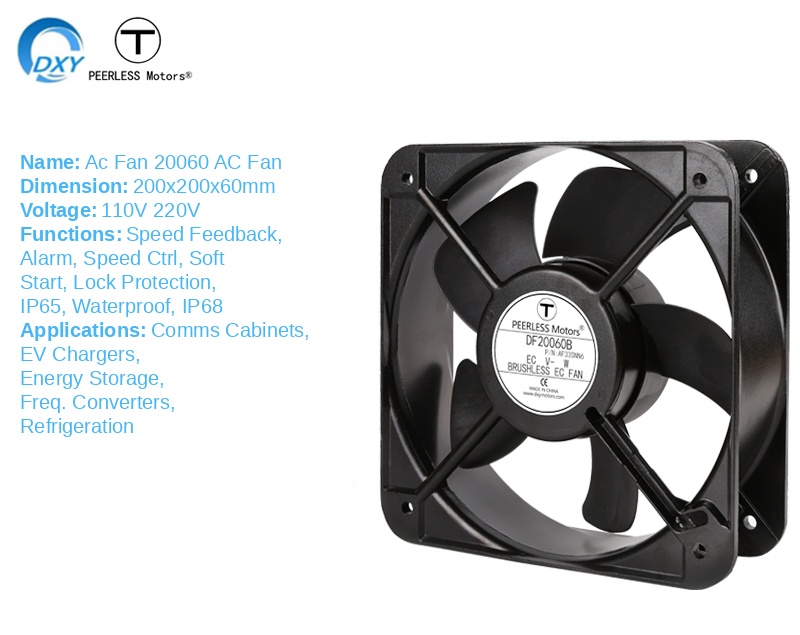

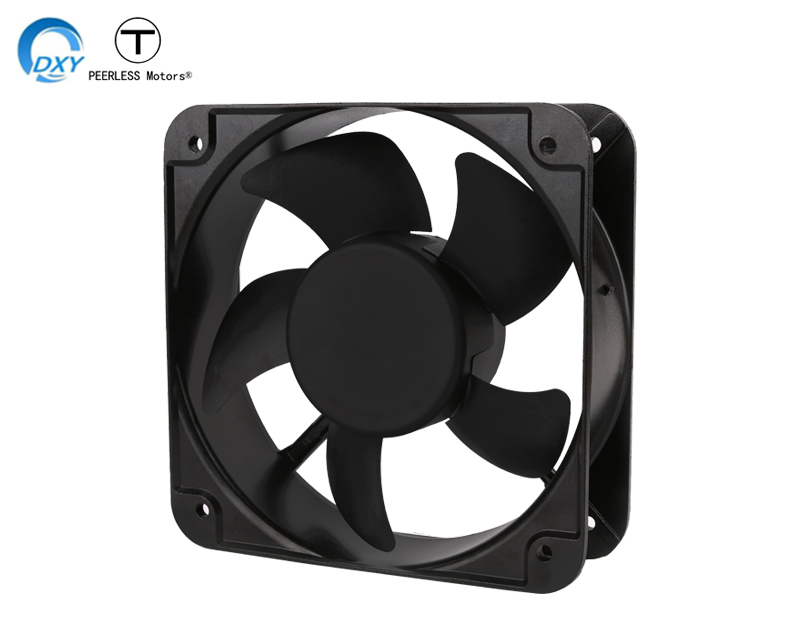

Ac Fan 20060 AC Fan
AC axial fan offers dependable cooling with low energy consumption. Built with quality bearings, robust frame, and heat-resistant materials for continuous industrial operation.
Specifications
| Model | DF20060B22H |
| Name | 20060 AC Cooling Fan |
| Size | 200x200x60MM |
| Voltage | 110V–220V |
| Speed | 1600–3400 RPM |
| Noise | 40.6–64.5dBA |
| Motor | EC Brushless Outer Rotor Motor |
| Frame Material | Aluminum |
| Impeller Material | PBT |
| Insulation Class | Class A |
| Operating Temperature | -10℃―70℃ |
| Weight | 960g |
QUALITY CERTIFICATE | SUPER WATERPROOF | INTELLIGENT CONTROL
Applications
- AC Equipment
- Industrial Equipment。Energy Storage Equipment
- Battery Formation Cabinet
- Server Cabinet
- Industrial Consoles etc.
Product Type
Metal Fan, Axial Fan, AC Fan, High Airflow Blower
Dimension Drawings & Performance Curves
Need a Custom Solution?
Contact us for custom speed control, waterproof, or noise-reduction requirements.
