7020 DC Fan
DC axial cooling fan features excellent airflow performance with low noise and vibration. Dual ball bearing design, pure copper motor, and PBT housing ensure long service life and stable operation.
Specifications
| Name | 7020 DC Fan |
| Voltage | 12V-24V |
| Air Flow | 20.83-41.66 CFM |
| Static Pressure | 1.72-6.90 mmAq |
| Noise | 26.5-40.2 dBA |
| Motor | DC Brushless Outer Rotor Motor |
| Impeller Material | PBT bearingsystem：2ball，longservice lifeSleeve， FDB |
| Insulation Class | Agrade |
| Operating Temperature | -10℃～70℃ |
Applications
- EV Charger
- Charging Cabinet
- Power Equipment
- Home Applianceintelligent
- Refrigerators & Freezers
- chassisetc.
Product Type
Axial Fan, DC Fan, Small Fan
Dimension Drawings & Performance Curves

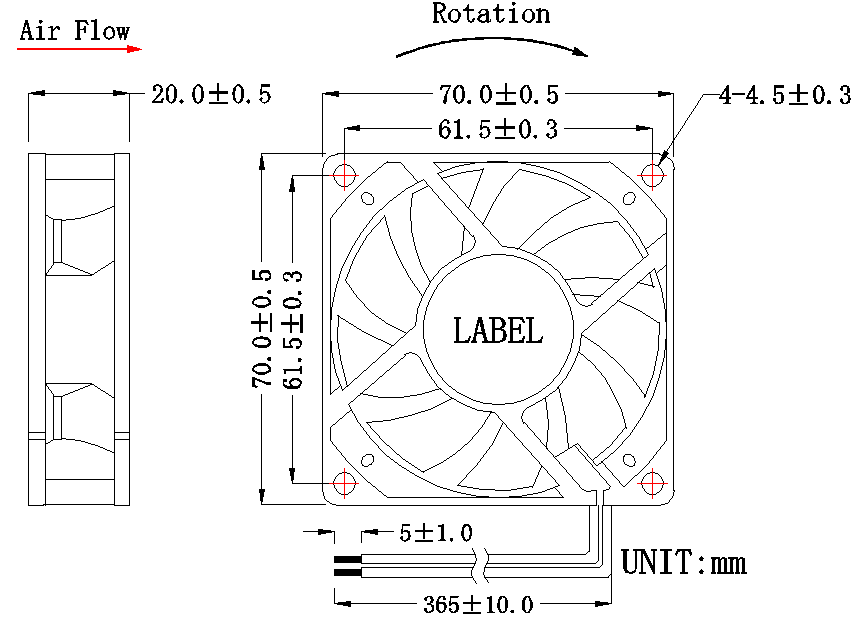

Dimension Drawing

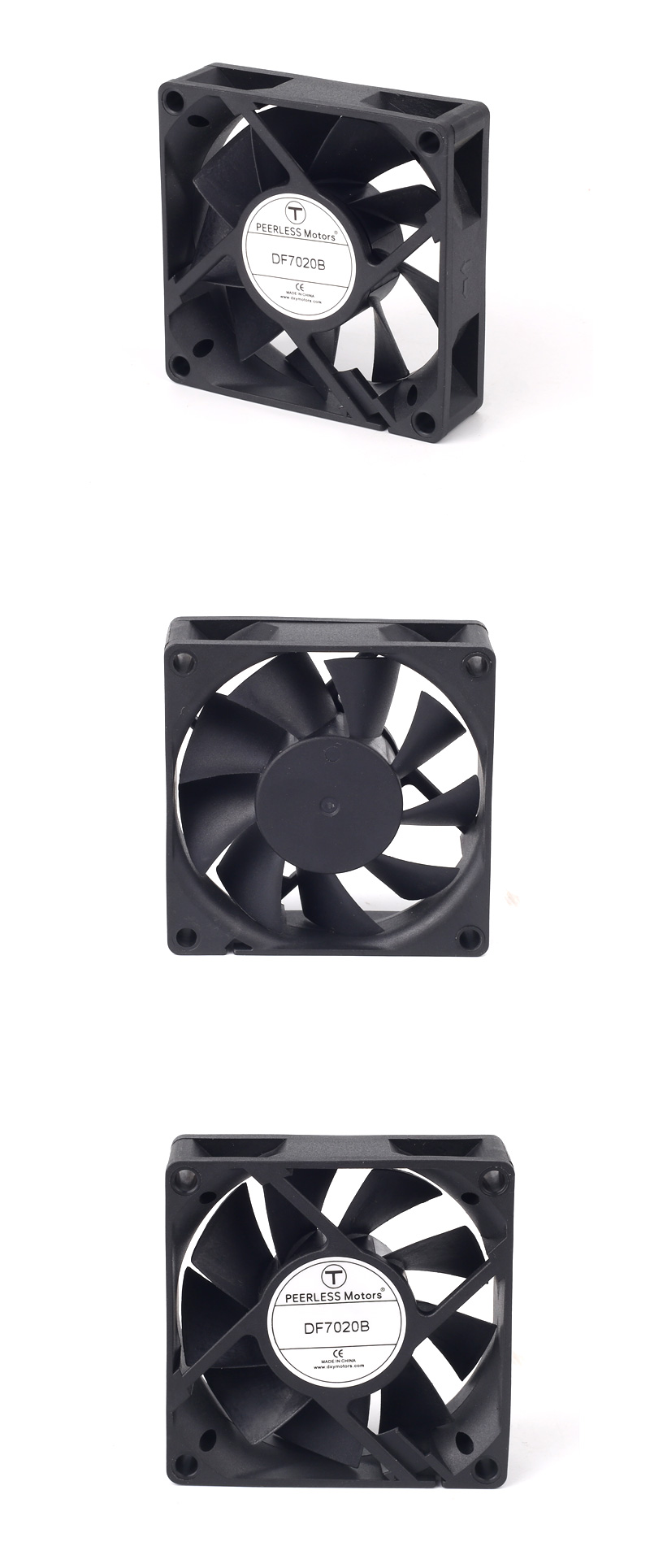

Real Photos

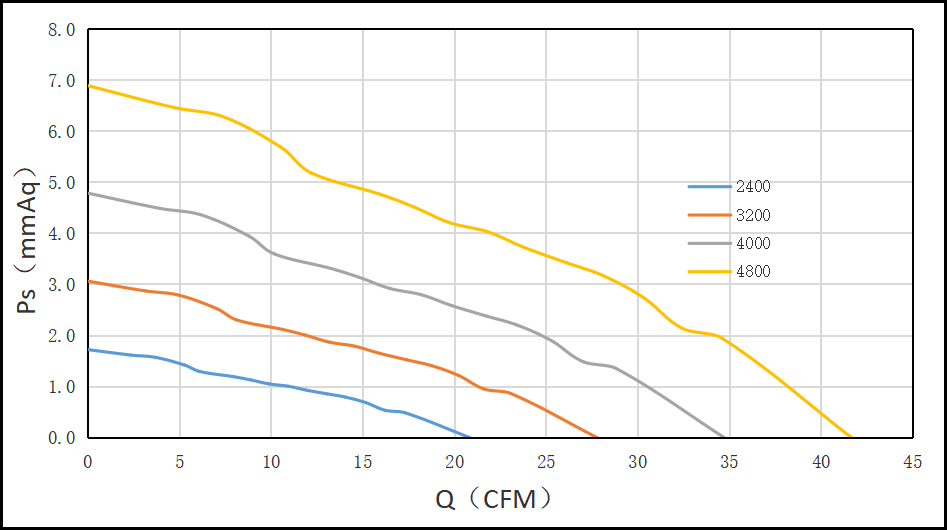

PQ Performance Curves
Parameter Table
Need a Custom Solution?
Contact us for custom speed control, waterproof, or noise-reduction requirements.
