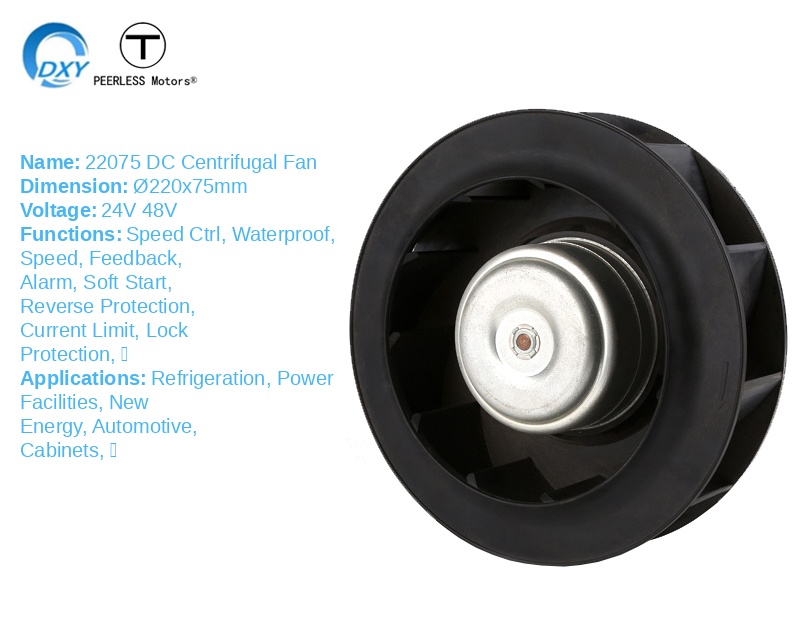

22075 Dc Centrifugal Fan
DC centrifugal fan provides strong airflow with high static pressure. Features brushless DC motor and durable construction for reliable performance in ventilation and cooling systems.
Specifications
| Model | DI220B24L |
| Name | 22075 Dc Centrifugal Fan |
| Size | 220x75MM |
| Voltage | 24V-48V |
| Speed | 2000–3200 RPM |
| Air Flow | 356.55–570.47CFM |
| Static Pressure | 22.29–57.06mmAq |
| Noise | 45.0–76.0dBA |
| Motor | DC Brushless Outer Rotor Motor |
| Frame Material | Aluminum |
| Impeller Material | PBT Bearing System: Dual Ball Bearing |
| Insulation Class | Class A |
| Operating Temperature | -10℃―70℃ |
| Weight | 3010g |
QUALITY CERTIFICATE | SUPER WATERPROOF | INTELLIGENT CONTROL
Applications
- Industrial Air Conditioner
- Chassis & Cabinet
Product Type
High Airflow Blower, Centrifugal Fan, Centrifugal Fan

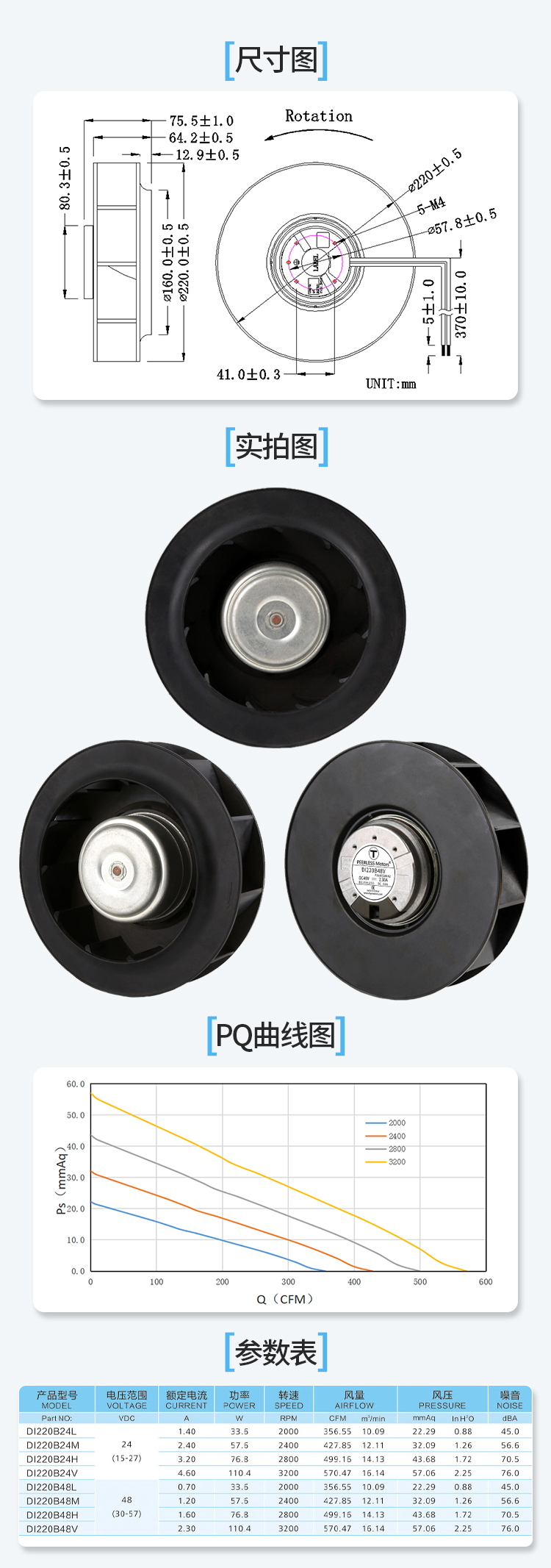

Dimension Drawings & Performance Curves
